Garmin ECHOMAP UHD 75sv with BlueChart g3 UK and Ireland

Product Code: GEU75SV

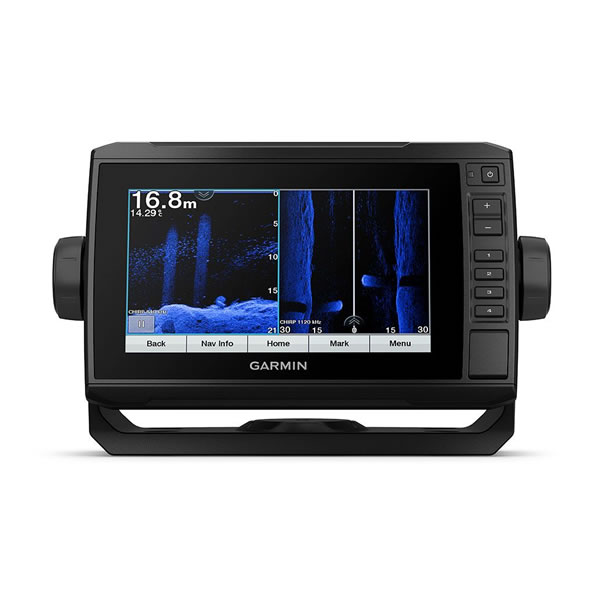

Garmin ECHOMAP UHD 75sv chartplotter/fishfinder combo features a 7-inch touchscreen display with keyed-assist buttons for use in wet conditions.

The Garmin ECHOMAP UHD 75sv when purchased from ActiveGPS comes preloaded with Bluechart g3 charts for the United Kingdom, Ireland and Northwest mainland Europe coast. Garmin BlueChart g3 marine chart data features integrated Garmin and Navionics content.

The Garmin ECHOMAP UHD 95s supports Ultra High-Definition ClearVu and SideVu scanning sonar or Garmin high wide CHIRP traditional sonar when connected to a compatible transducer. To enable sonar views a transducer (sold separately) is required. Learn more about Garmin transducers.

Garmin ECHOMAP UHD 75sv features built-in WiFi connectivity which enables you to pair the chartplotter with your smartphone or tablet for remote access to the OneChart feature, smart notifications, software updates, Garmin QuickDraw Community data and more.

Garmin ECHOMAP UHD 75sv supports NMEA 2000 and NMEA 0183 network support for autopilot and engine data and is compatible with Force trolling motor for full control of the motor from the screen plus the ability to route to waypoints, follow tracks and more.

Garmin ECHOMAP UHD 75sv with BlueChart g3 UK and Ireland - £849.99

Deliveries

We offer UK, Europe and Worldwide deliveries. We despatch orders at 4:30pm on Monday, Tuesday, Wednesday, Thursday and Friday. We need to receive your order on those days by 3:00pm. When possible we may despatch orders received after that time. No orders are despatched on Saturday, Sunday or Bank Holidays in England and Wales.

We offer FREE UK delivery* on all orders of £50.00 or more, plus next working day and guaranteed Saturday delivery options. Click here for further info. All options also appear at the basket pages. *Excludes Northern Ireland for chartplotters, fishfinders, etc. Please contact us for courier cost to dispatch to Northern Ireland prior to placing your order.

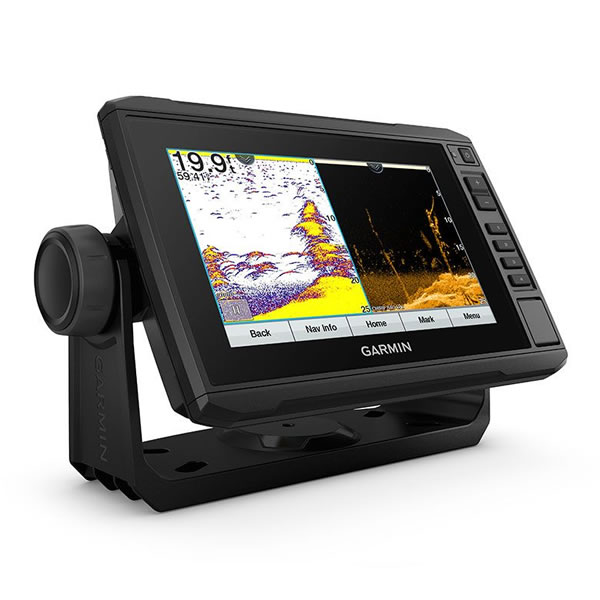

Garmin ECHOMAP UHD 75sv chartplotter features a bright, sunlight readable 7-inch touchscreen display. In addition for all weather conditions e.g. rain, ocean spray, etc the Garmin ECHOMAP UHD 75sv also features keyed-assist buttons, located to the right hand side of the 7-inch touchscreen display.

The Garmin ECHOMAP UHD 75sv when purchased from ActiveGPS is preloaded with Garmin BlueChart g3 charts featuring integrated Garmin and Navionics content for the United Kingdom, Ireland and Northwest mainland Europe coast.

The free to use ActiveCaptain app provides a connection to your Garmin ECHOMAP UHD 75sv device. Via your mobile device with the ActiveCaptain app, you can download, purchase, and update maps and charts. You can use the app to easily and quickly transfer user data, such as waypoints and routes, connect to the Garmin Quickdraw Contours Community, and update device software. You can also plan your trip from the app.

You can connect to the ActiveCaptain community for up-to-date feedback on marinas and other points of interest. The app can push smart notifications, such as calls and texts, to your chartplotter display when paired.

Take control of the most powerful and efficient trolling motor available, route it to waypoints, follow tracks and more from the screen of the Garmin ECHOMAP UHD 75sv chartplotter.

If you own multiple compatible Garmin ECHOMAP Plus, Garmin ECHOMAP UHD or Garmin ECHOMAP Ultra chartplotters/combos on your boat e.g. Garmin ECHOMAP Ultra2 122sv, you can share information - such as sonar, user data and charts - among them. This feature is only available with Garmin ECHOMAP Plus/UHD 7-inch and 7-inch models and Garmin ECHOMAP Ultra2 10-inch and 12-inch models.

The Garmin ECHOMAP UHD 75sv is fully compatible with both NMEA 2000 AND NMEA 0183 networks. You can connect the Garmin ECHOMAP UHD 75sv to autopilots, digital switching, weather, FUSION-Link audio system, media, VHF, AIS and more from one screen.

Add a Garmin Transducer

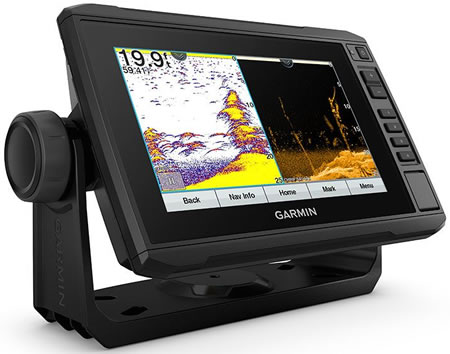

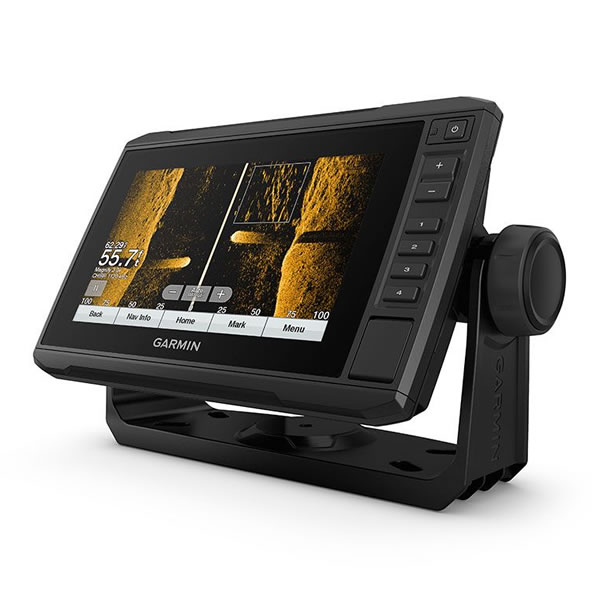

When connected to a compatible transducer, the Garmin ECHOMAP UHD 75sv chartplotter can be used as a fishfinder. The Garmin ECHOMAP UHD 75sv features built-in support for Ultra High-Definition ClearVu and SideVu scanning sonar or Garmin high wide CHIRP traditional sonar.

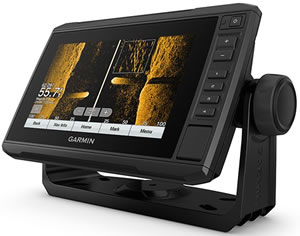

Different sonar views can help you view the fish in the area. The sonar views available vary depending on the type of transducer and sounder module connected to the chartplotter. For example, you can view certain Panoptix sonar screens only if you have a compatible Panoptix transducer connected.

There are four basic styles of sonar views available: a full-screen view, a split-screen view that combines two or more views, a split-zoom view, and a split-frequency view that displays two different frequencies. You can customise the settings for each view in the screen. For example, if you are viewing the split-frequency view, you can separately adjust the gain for each frequency.

For more information about which transducer is best for your needs, please complete our online transducer form. Alternatively, if you know which transducer your require (we do however recommend that you complete our online form to find the perfect transducer) you can view the comprehensive range of transducers available buy from ActiveGPS. Pictured below, transom mounted transducer, thru-hull transducer and in-hull transducer.

Garmin Marine Charts

The Garmin ECHOMAP UHD 75sv when purchased from ActiveGPS comes preloaded with Garmin BlueChart g3 marine charts with coverage for the United Kingdom, Ireland and Northwest mainland Europe coasts. In addition customers buying the Garmin ECHOMAP UHD 75sv from ActiveGPS are entitled to one free BlueChart g3 download within 12 months of purchase under Garmin's New Chart Guarantee.

Additional Garmin BlueChart g3 Vision marine charts with more detailed information (than the standard Garmin BlueChart g3 charts) e.g. high resolution satellite imagery of harbours, and ports are among other premium features are also available to buy from ActiveGPS and use with Garmin ECHOMAP UHD 75sv chartplotter.

Garmin BlueChart g3 Vision charts are available to purchase in three different sizes or areas of water, these are:

‣Garmin BlueChart g3 Vision Small charts
‣Garmin BlueChart g3 Vision Regular charts
‣Garmin BlueChart g3 Vision Large charts

Pictured below: screenshots from the Garmin BlueChart g3 Vision chart series.

Garmin ECHOMAP UHD 75sv Features

‣7-inch keyed-assist touchscreen WXGA screen chartplotter
‣Preloaded Garmin BlueChart g3 charts for the United Kingdom, Ireland and Northwest mainland Europe coast
‣Support for Ultra High-Definition ClearVu and SideVu scanning sonar or Garmin high wide CHIRP traditional sonar (transducer sold separately)
‣Supports Panoptix all-seeing sonar, including Panoptix LiveScope sonar
‣Sonar sharing capabilities with other ECHOMAP Plus, ECHOMAP UHD and ECHOMAP Ultra units
‣Share data with other devices on your network
‣Built-in WiFi connectivity pairs with the free ActiveCaptain app
‣Supports NMEA 2000 and NMEA 0183 network support for autopilot and engine data
‣Compatible with Force trolling motor for full control of the motor from the screen plus the ability to route to waypoints, follow tracks and more

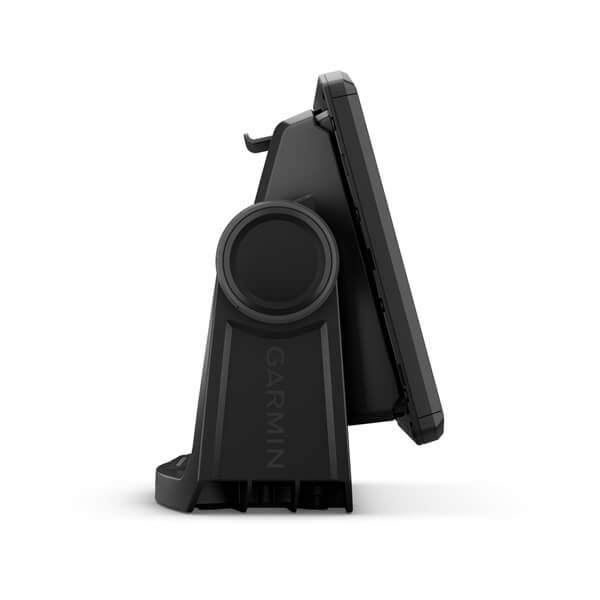

‣Quick-release tilt/swivel mount for fast and easy mobility
‣Waterproof to IPX7
‣Supports optional Garmin BlueChart g3 Vision HD charts with premium features
‣2 year manufacturers guarantee

Installation

The Garmin ECHOMAP UHD 75sv comes supplied with Garmin tilt/swivel mount with quick release cable (12-pin). The tilt/swivel mount surface mounts against most flat surfaces on your boat.

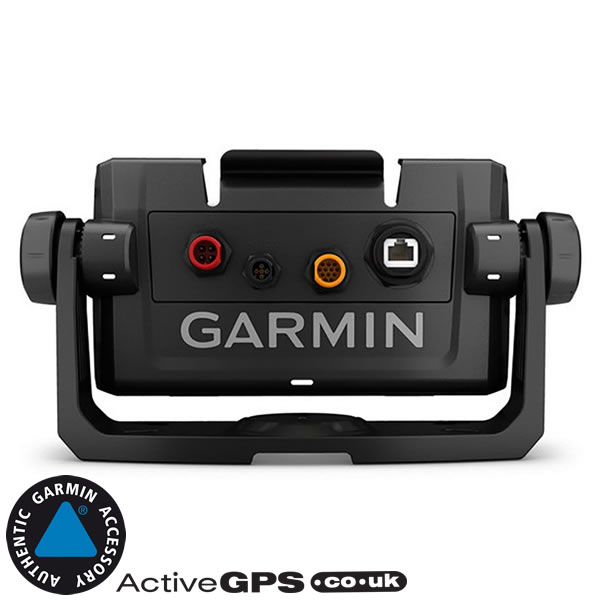

To make installation easier, the Garmin ECHOMAP UHD 75sv power cables plug directly into the back of the tilt/swivel mount (pictured below). This allows for quick installation and set up for the Garmin ECHOMAP UHD 75sv chartplotter. If required additional tilt/swivel mounts and other Garmin ECHOMAP UHD 75sv accessories can be purchased from ActiveGPS.

Chart Coverage

The Garmin ECHOMAP UHD 75sv marine fishfinder/chartplotter combo is preloaded with Garmin BlueChart g3 marine charts with coverage for the United Kingdom, Ireland and Northwest mainland Europe coast. In addition, customers buying the Garmin ECHOMAP UHD 75sv from ActiveGPS are entitled to one free Garmin BlueChart download within 12 months of purchase under Garmin's New Chart Guarantee.

Coverage of Garmin BlueChart g3 UK and Ireland chart

What's in the box? (when purchased from ActiveGPS.co.uk)

‣Garmin ECHOMAP UHD 75sv with BlueChart g3 for UK, Ireland and Northwest mainland Europe coast
‣Charging/data cable
‣Tilt/swivel mount with quick release cradle
‣8-pin transducer to 12-pin sounder adapter cable
‣Flush mount
‣Protective cover
‣Hardware
‣Documentation

Garmin ECHOMAP UHD 75sv Accessories

Looking for accessories and spares for the Garmin ECHOMAP UHD 75sv? Accessories available to purchase include replacement protective cover, threaded power/data cable and tilt/swivel mount. Pictured below are a few of the other accessories that arecompatible and will enhance the functionality and usability of the Garmin ECHOMAP UHD 75sv chartplotter. View all Garmin ECHOMAP UHD 75sv accessories.

Garmin ECHOMAP UHD 75sv GPS 24xd NMEA 2000 Antenna

£269.99

‣Garmin GPS 24xd NMEA 2000 multi band GNSS antenna provides 10Hz position update rates for high-sensitivity tracking.

Garmin ECHOMAP UHD 75sv SteadyCast Heading Sensor

£179.99

‣Garmin SteadyCast heading sensor provides fast calibration and premium heading accuracy.

Garmin ECHOMAP UHD 75sv Tilt/Swivel Mount (12-pin)

£54.99

‣Surface mount your Garmin ECHOMAP UHD 75sv chartplotter using this 12-pin Garmin tilt/swivel mount with quick release cable.

Garmin ECHOMAP UHD 75sv Technical Specification

‣Technology: GPS, WiFi
‣Display: 7-inch touchscreen WVGA display (400 x 800 pixels)
‣Display size: 155mm x 86mm
‣Battery: None
‣Mounting options: Bail mount or flush mount
‣Waypoints/favourites/locations: 5,000
‣Routes: 100
‣Track Log: 50,000 points, 50 saved tracks
‣Preloaded with BlueChart g3 United Kingdom, Ireland and Northwest mainland Europe coast
‣NMEA input/output: NMEA 2000 and NMEA 0183 compatible
‣Built-in memory: None (cannot load maps to internal memory)
‣SD card slot: 1 microSD card; 32 GB maximum size
‣Garmin radar compatible: No
‣Garmin sonar compatible: Yes
‣Waterproof: Yes, IPX7
‣Dimensions: Width - 250mm, Height - 139mm, Depth - 51mm
‣Weight: 770grams
‣Guarantee: 2-year
‣Garmin ECHOMAP UHD 75sv manual

Manual requires Adobe Acrobat Reader
Download a free copy here

This product is a sophisticated electronic device which requires that you read, understand, and act upon the information given in the instruction manual (usually available via the above 'manual' link). You will need internet access and, in accordance with the manufacturers’ recommendations, regularly seek out and accept all firmware or software updates offered by the manufacturer. All GPS devices need to ‘see’ the satellites in the sky. Therefore you will need to know that your vehicle does not have glass that will block or impede the GPS signal.

Updates to this product are via the internet. At this product page we state compatibility with specific versions of current internet connection devices, for example: PC, laptop, MAC, smartphone etc. The Consumer Contract Regulations allow you 14 days, from receipt of purchase, to check compatibility with your internet connection device/s. If you choose to replace or update your PC, MAC etc. neither we nor the manufacturer will be responsible if the new/replacement Operating System (OS) is not compatible with the purchased product.
