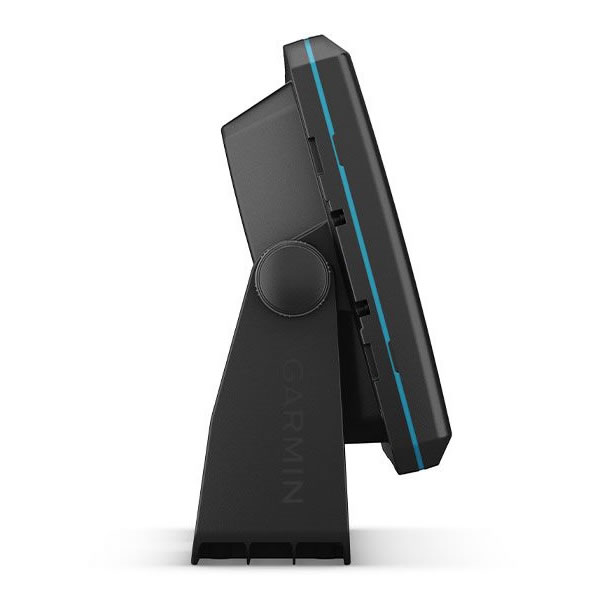

Garmin STRIKER Vivid 9sv

Product Codes: GARSV9SV, GARSV9SVT

The Garmin STRIKER Vivid 9sv is a Fishfinder, features GPS technology and includes WiFi to connect to Active Captain and Quickdraw Contours. Quickdraw Contours allows you to automatically store water depths (when used with a transducer).

Using the GPS technology you can mark waypoints and navigate back to them. You will also be able to view your boats speed.

The 3 in 1 transducers provides traditional sonar, DownVu and Side Vu.


Garmin STRIKER Vivid 9sv - £434.99


Garmin STRIKER Vivid 9sv with GT52HW-TM Transducer - £589.99


We offer UK, Europe and Worldwide deliveries. We despatch orders at 4:30pm on Monday, Tuesday, Wednesday, Thursday and Friday. We need to receive your order on those days by 3:00pm. When possible we may despatch orders received after that time. No orders are despatched on Saturday, Sunday or Bank Holidays in England and Wales.

We offer FREE UK delivery on all orders of £50.00 or more, plus next working day and guaranteed Saturday delivery options. Click here for further info. All options also appear at the basket pages.

The Garmin STRIKER Vivid 9sv is a fishfinder with GPS technology and CHIRP Sonar.

Built-in WiFi enables you to connect to Active Captain to receive smart notifications right on your screen. WiFi can also be used to download waypoints and software update downloads.

Automatically record water depth to the Garmin Striker device to create your own on the water charts with Quickdraw Contours. These created charts can then be shared with other Garmin Striker devices using the WiFi ocnnectivity.

With the in-built GPS technology you can mark hotspots such as good fishing locations, docks or ramps. You can then easily navigate back to these stored locations. If you have a echoMAP charplotter too you can share waypoints and routes between your STRIKER and a Garmin echoMAP system. You are also able to view the speed of your boat or yacht on the display. Please note: Although the Garmin STRIKER has GPS technology it is not a Chartplotter.

With the STRIKER Vivid 9sv you will get CHIRP Traditional Sonar, Sonar History Rewind, Waypoint Map, Boat Speed Display and Built-in Flasher.

Both Garmin DownVu and SideVu Scanning are included with the Garmin STRIKER. CHIRP DownVu enables you to view below your boat whereas the CHIRP SideVu enables you to view the side of your boat. The CHIRP technology is an advanced technology that provides an ultra-clear image showing the views beneath your boat or yacht and at the sides of your vessel too.

Smooth scaling software technology for depth range adjustments is also provided with the Garmin STRIKER 7sv.

Garmin STRIKER Vivid 9sv Features

‣WVGA colour screen Fishfinder
‣Keypad control
‣Waterproof to IPX7 standards
‣WiFi connection for Active Captain and sharing Quickdraw Contours
‣GPS speed
‣Sonar features DownVu and SideVu for views below the boat and also an underwater view to the sides of your boat
‣Maximum depth for Sonar use: 2,300 ft at 77kHz (freshwater) and 1,100 ft at 77kHz (saltwater)
‣Mark waypoints and go back to them (ie. save favourite fishing spots)
‣Includes one 4-pin transducer port
‣Includes one 4-pin SideVu transducer port
‣Quickdraw Contours
‣Integrated GPS
‣Intergrated wireless connectivity
‣Course over Ground (COG)
‣Current draw @ 12V: 0.75A
‣2 year manufacturers guarantee


The Garmin STRIKER Vivid 9sv includes a tilt mount for mounting on your boat or yacht. The Garmin GT52HW-TM Transducer included is for use on a boat whereby the boat should be an outboard powered vessel. You will be able to see the view of the water below and to the sides of your boat/yacht as Garmin DownVu and SideVu both feature on this Garmin device.

What's in the box? (when purchased from

Product Code: GARSV9SV

‣Garmin STRIKER Vivid 9sv
Power/data cable
12-pin to dual 4-pin transducer adapter cable
Tilt mount
‣Garmin bumper sticker

Product Code: GARSV9SVT

‣Garmin STRIKER Vivid 9sv
Garmin GT52HW-TM transducer
Power/data cable
12-pin to dual 4-pin transducer adapter cable
Tilt mount
‣Garmin bumper sticker

Garmin STRIKER Vivid 9sv Accessories

Looking for Garmin STRIKER Vivid 9sv accessories? Accessories available to purchase include protective cover, tilt mount and flush mount kit. If you'd like to add a transducer to your STRIKER 7sv please see Garmin transducer page. View all Garmin STRIKER Vivid 9sv accessories

Garmin STRIKER Vivid 9sv Protective Cover


‣Heavy duty 9-inch cover fits the Garmin STRIKER Vivid 9sv fishfinder head unit snugly to protect it.

Garmin STRIKER Vivid 9sv Flush Mount Kit


‣Garmin STRIKER Vivid 9sv Flush Mount Kit enables you to easily position your fishfinder to almost any flat surface on your boat.

Garmin STRIKER Vivid 9sv 6-pin to 4-pin Sounder Cable


‣Connect your Garmin STRIKER Vivid 9sv fishfinder with a 4-pin connection to a dual beam transducer with an 6-pin connection.

Garmin STRIKER Vivid 9sv Technical Specification

‣Technology: Fishfinder, Transducer, WiFi, GPS
‣Display: 9-inch WVGA display (800 x 480 pixels)
‣Dual Frequency (50/200 KHZ) Sonar Capable: Yes
‣Dual Beam (77/200 KHZ) Sonar Capable: Yes
‣Frequencies supported: Traditional: 50/77/200 kHz CHIRP (mid and high) ClearVu: 260/455/800 kHz
‣Water temperature sensor included: Yes
‣Split screen zoom: Yes
‣Ultrascroll (displays fish targets at higher boat speeds): Yes
‣Fish symbol ID (helps identify fish targets): Yes
‣Autogain technology (minimises clutter, maximises targets): Yes
‣Adjustable depth line (measures depth of underwater objects): Yes
‣A-Scope (real time display of fish passing through transducer beam): Yes
‣Water temperature sensor included: Yes
‣Waterproof: Yes, IPX7
‣Dimensions: Width - 282mm, Height - 165mm, Depth - 60mm
‣Weight: 1100g
‣Guarantee: 2-year
Garmin STRIKER Vivid 9sv manual

Manual requires Adobe Acrobat Reader
Download a free copy here

This product is a sophisticated electronic device which requires that you read, understand, and act upon the information given in the instruction manual (usually available via the above 'manual' link). You will need internet access and, in accordance with the manufacturers’ recommendations, regularly seek out and accept all firmware or software updates offered by the manufacturer. All GPS devices need to ‘see’ the satellites in the sky. Therefore you will need to know that your vehicle does not have glass that will block or impede the GPS signal.

Updates to this product are via the internet. At this product page we state compatibility with specific versions of current internet connection devices, for example: PC, laptop, MAC, smartphone etc. The Consumer Contract Regulations allow you 14 days, from receipt of purchase, to check compatibility with your internet connection device/s. If you choose to replace or update your PC, MAC etc. neither we nor the manufacturer will be responsible if the new/replacement Operating System (OS) is not compatible with the purchased product.
