Garmin STRIKER 5cv

Product Codes: GARS5DV

The Garmin STRIKER 5cv is a Fishfinder and also features GPS technology. The screen size is 5-inch with keypad control. The included Transducer and Sonar will allow you to view beneath your boat for finding fish under your boat.

Using the GPS technology you can mark waypoints and navigate back to them. You will also be able to view your boats speed.

2 in 1 transducers provides traditional sonar and DownVu.

Garmin STRIKER 5cv has been discontinued.

The replacement model is the Garmin STRIKER Vivid 5cv.

View latest Fishfinders

View accessories for the Garmin STRIKER 5cv.

Deliveries

We offer UK, Europe and Worldwide deliveries. We despatch orders at 4:30pm on Monday, Tuesday, Wednesday, Thursday and Friday. We need to receive your order on those days by 3:00pm. When possible we may despatch orders received after that time. No orders are despatched on Saturday, Sunday or Bank Holidays in England and Wales.

We offer FREE UK delivery on all orders of £50.00 or more, plus next working day and guaranteed Saturday delivery options. Click here for further info. All options also appear at the basket pages.

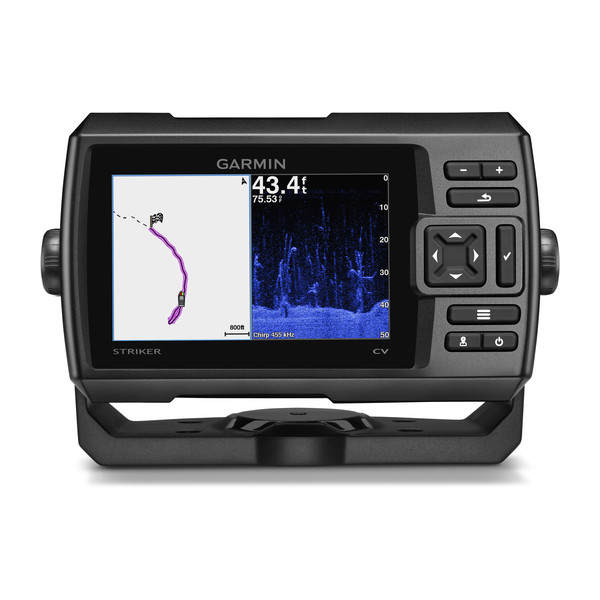

The Garmin STRIKER 5cv is a fishfinder with GPS technology and CHIRP Sonar. The screen on the STRIKER 5cv is 5-inch colour display.

With the in-built GPS technology you can mark hotspots such as good fishing locations, docks or ramps. You can then easily navigate back to these stored locations. If you have a echoMAP charplotter too you can share waypoints and routes between your STRIKER and a Garmin echoMAP system. You are also able to view the speed of your boat or yacht on the display. Please note: Although the Garmin STRIKER has GPS technology it is not a Chartplotter.

With the STRIKER 5cv you will get CHIRP Traditional Sonar, Sonar History Rewind, Waypoint Map, Boat Speed Display and Built-in Flasher.

Garmin DownVu Scanning is also included with the Garmin STRIKER. CHIRP DownVu enables you to view below your boat . The CHIRP technology is an advanced technology that provides a ultra-clear image showing the view beneath your boat or yacht.

The STRIKER 5cv includes a Garmin GT20 transducer with CHIRP 77/200kHz, 455/800 kHz CHIRP DownVu with transmit power of 300W RMS/2,400 peak-to-peak. The GT20 transducer must be mounted. The Garmin GT20 transducer has a transom mount for use on a boat whereby the boat should be an outboard powered vessel. This transducer includes down vision.

If you would like to purchase a Garmin STRIKER with a larger or smaller screen size then there is a 3.5-inch (STRIKER 4cv) and 7-inch (STRIKER 7cv) model available too.

Smooth scaling software technology for depth range adjustments is also provided with the Garmin STRIKER 5cv.

Garmin STRIKER 5cv Features

‣5-inch WVGA colour screen Fishfinder
‣Garmin GT20 transducer included
‣Keypad control
‣Waterproof to IPX7 standards
‣GPS speed
‣Sonar features DownVu for views below the boat/yacht
‣Maximum depth for Sonar use: 2,300 ft at 77kHz (freshwater) and 1,100 ft at 77kHz (saltwater)
‣Mark waypoints and go back to them (ie. save favourite fishing spots)
‣1 Year manufacturers guarantee

Installation

The Garmin STRIKER 5cv includes a tilt mount for mounting on your boat or yacht. The Garmin GT20 Transducer included is for use on a boat whereby the boat should be an outboard powered vessel. You will be able to see the view of the water below your boat/yacht as Garmin DownVu features on this Garmin device.

What's in the box? (when purchased from ActiveGPS.co.uk)

‣STRIKER 5cv
‣GT20 transducer
‣Transom and trolling motor mounts
‣Power cable
‣Tilt/Swivel mount
‣Documentation

Garmin STRIKER 5cv Accessories

Looking for Garmin STRIKER 5cv accessories? Accessories available to purchase include protective cover, tilt and swivel mount and flush mount kit. If you'd like to add a transducer to your STRIKER 5cv please see Garmin transducer page.

View all Garmin STRIKER 5cv accessories

Garmin STRIKER 5cv Technical Specification

‣Technology: Fishfinder, Transducer
‣Display: 5-inch WVGA display (800 x 480 pixels)
‣Water temperature log and graph: Yes
‣Waypoints/favourites/locations: Yes
‣Garmin sonar compatible: Yes
‣DownVu and SideVu: DownVu only
‣AutoGain technology (minimise clutter, maximise targets): Yes
‣A-scope (real time display of fish passing through transducer beam): Yes
‣Water temperature sensor included: Yes
‣Waterproof: Yes, IPX7
‣Dimensions: Width - 188mm, Height - 116mm, Depth - 54mm
‣Weight: 430 g
‣Guarantee: 1-year
‣Garmin STRIKER 5cv manual

Manual requires Adobe Acrobat Reader
Download a free copy here

This product is a sophisticated electronic device which requires that you read, understand, and act upon the information given in the instruction manual (usually available via the above 'manual' link). You will need internet access and, in accordance with the manufacturers’ recommendations, regularly seek out and accept all firmware or software updates offered by the manufacturer. All GPS devices need to ‘see’ the satellites in the sky. Therefore you will need to know that your vehicle does not have glass that will block or impede the GPS signal.

Updates to this product are via the internet. At this product page we state compatibility with specific versions of current internet connection devices, for example: PC, laptop, MAC, smartphone etc. The Consumer Contract Regulations allow you 14 days, from receipt of purchase, to check compatibility with your internet connection device/s. If you choose to replace or update your PC, MAC etc. neither we nor the manufacturer will be responsible if the new/replacement Operating System (OS) is not compatible with the purchased product.
