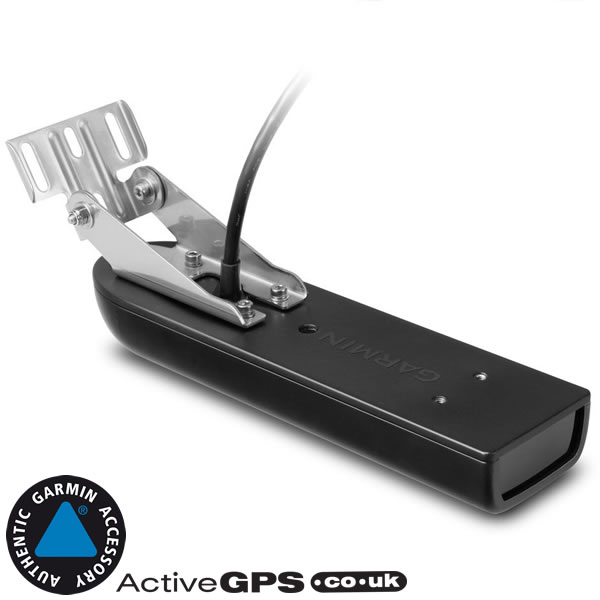

Garmin GT21 Transom Mount Transducer

Product Code: GARGT21TM

The Garmin GT21 transom mount transducer is optimised for the coastal and offshore angler and provides traditional and CHIRP ClearVu scanning sonar.

Once connected to your compatible Garmin Chartplotter or Fishfinder the GT21 transom mount mount transducer consistently displays clear and crisp fish arches with superior target separation as well as clear definition of structure below your vessel.

The 30ft transducer cable with built-in fast response temperature sensor has a power rating of 600W; a depth of 1,500ft (traditional) and 1,000ft (ClearVu); an operating frequency of 50/200kHz (traditional) and 260/455kHz (ClearVu); and a 0 to 70 transom angle.

Garmin part number: 010-01962-00

Compatibility: Compatible with selected Garmin chartplotter/fishfinders models, please complete our online form on the Garmin Transducers Buyer's Guide page.

Garmin GT21 8-Pin Transom Mount Transducer - £174.99

Deliveries

We offer UK, Europe and Worldwide deliveries. We despatch orders at 4:30pm on Monday, Tuesday, Wednesday, Thursday and Friday. We need to receive your order on those days by 3:00pm. When possible we may despatch orders received after that time. No orders are despatched on Saturday, Sunday or Bank Holidays in England and Wales.

We offer FREE UK delivery on all orders of £50.00 or more, plus next working day and guaranteed Saturday delivery options. Click here for further info. All options also appear at the basket pages.

Garmin GT21 Transom Mount

The Garmin GT21-TM transom mount transducer is perfect for the shallow water fisherman who want traditional and CHIRP ClearVu scanning sonar.

Once connected to your compatible Garmin Chartplotter or Fishfinder the GT21 transom mount transducer consistently displays clear and crisp fish arches with superior target separation as well as clear definition of structure below your vessel.

Transducer comes with transom and trolling motor mounts, and installation instructions. Follow the instructions carefully to avoid damaging your boat.

Key Features

‣Transom mount transducer
‣8-pin transom mount transducer
‣Traditional sonar
‣Traditional (50/200kHz)
‣CHIRP ClearVu (260/455kHz)
‣Traditional Power 600W
‣ClearVu Power 500W
‣Genuine Garmin accessory

What's in the box?

‣GT21-TM transducer
‣Transom mount
‣Mounting hardware
‣Documentation

What is the Garmin GT21-TM compatible with?

The genuine Garmin GT21 is transom mount transducer and is compatible with selected Garmin chartplotter/fishfinders models. Unless you are sure it is compatible with your Garmin marine GPS device please complete our online form on the Garmin Transducers Buyer's Guide page.

Once you have completed the online form with details of the Garmin marine device you own or intend to use your Garmin transducer with, we will then be able to confirm the exact transducer best suited to your needs.

The Garmin Transducer online form also asks: What material is your boat's hull made from? How is your motor mounted? Which transducer mounting style would you like to use? What is the deadrise angle of the boat's hull where the transducer will be mounted? What sonar view(s) do you require?

View the Garmin Transducer Buyer's Guide

Garmin GT21-TM Technical Specification

‣Frequency: Traditional 50/200; ClearVu CHIRP 260 kHz (245-275 kHz) and 455kHz (445-465 kHz)
‣Power: Traditional 600 watts; ClearVu 500 watts
‣Beam width (°) LF/HF (-3dB): Traditional (40/10); ClearVu (2.0x51 @ 260 kHz) and (1.4x29 @ 455 kHz)
‣Maximum depth: Traditional: 1500 foot; ClearVu: 1000 foot
‣Depth/Speed/Temperature: Depth and Temperature
‣Number of pins: 8-pin
‣Cable length: 30 foot
‣Supported deadrise/Transom angles: 0°-70° degree transom
‣Garmin Transom Mount Transducer manual

Manual requires Adobe Acrobat Reader
Download a free copy here

This product is a sophisticated electronic device which requires that you read, understand, and act upon the information given in the instruction manual (usually available via the above 'manual' link).
