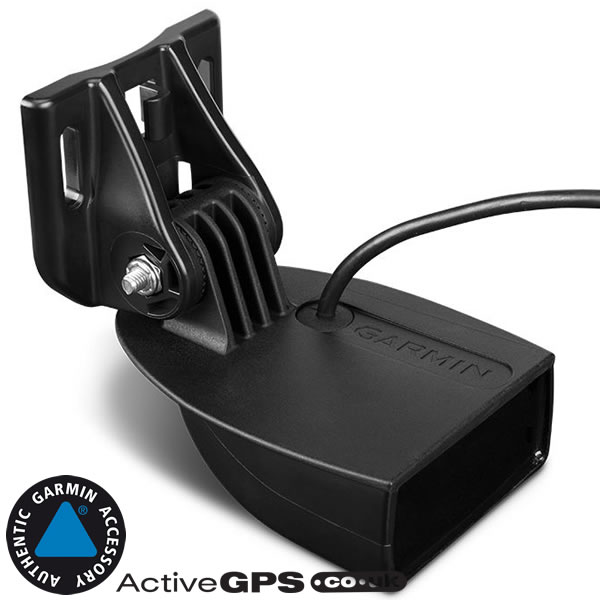

Garmin GT15M Transom Mount Transducer

Product Code: GARGT15M

The Garmin GT15M-TM transom mount transducer is perfect for fishermen who want clear bottom definition under the boat as well as crisp, clear and wide fish arches with excellent target separation to depth up to 1,900 feet.

The 8-pin transducer features mid-band CHIRP traditional sonar (85-165 kHz) and has a power rating of 600 W. It can be mounted on the transom

Transducer comes with transom motor mounts, and installation instructions. Follow the instructions carefully to avoid damaging your boat.

Garmin part number: 010-12402-10

Compatibility: Compatible with selected Garmin chartplotter/fishfinders models, please complete our online form on the Garmin Transducers Buyer's Guide page.




Garmin GT15M Transom Mount Transducer - £259.99


Deliveries

We offer UK, Europe and Worldwide deliveries. We despatch orders at 5.30pm on Monday, Tuesday, Wednesday, Thursday and Friday. We need to receive your order on those days by 4.30pm. When possible we may despatch orders received after that time. No orders are despatched after 5.30pm and no orders are despatched on Saturday or Sunday.

We offer FREE UK delivery on all orders of £40.00 or more, plus next working day and guaranteed Saturday delivery options. Click here for further info. All options also appear at the basket pages.


Garmin GT15M Transom Mount

The Garmin GT15M-TM transom mount transducer is perfect for fishermen who want clear bottom definition under the boat as well as crisp, clear and wide fish arches with excellent target separation to depth up to 1,900 feet.

The 8-pin transducer features mid-band CHIRP traditional sonar (85-165 kHz) and has a power rating of 600 W. It can be mounted on the transom

Transducer comes with transom motor mounts, and installation instructions. Follow the instructions carefully to avoid damaging your boat.


Key Features

‣Transom mount transducer
‣8-pin transom mount transducer
‣CHIRP Mid-band (85-165 kHz)
‣Power 500W
‣Genuine Garmin accessory


What's in the box?

‣GT15M-TM transducer
‣Transom mount
‣Documentation


What is the Garmin GT15M-TM compatible with?

The genuine Garmin GT15M is transom mount transducer and is compatible with selected Garmin chartplotter/fishfinders models. Unless you are sure it is compatible with your Garmin marine GPS device please complete our online form on the Garmin Transducers Buyer's Guide page.

Once you have completed the online form with details of the Garmin marine device you own or intend to use your Garmin transducer with, we will then be able to confirm the exact transducer best suited to your needs.

The Garmin Transducer online form also asks: What material is your boat's hull made from? How is your motor mounted? Which transducer mounting style would you like to use? What is the deadrise angle of the boat's hull where the transducer will be mounted? What sonar view(s) do you require?

View the Garmin Transducer Buyer's Guide


Garmin GT15M-TM Technical Specification

Frequency: CHIRP Mid-band (85-165 kHz)
Power: 600 watts
Beam width: 24°-13°
Maximum depth:1,900 ft. freshwater
Depth/Speed/Temperature: Depth and Temperature
Number of pins: 8-pin
Cable length: 20 foot
Supported deadrise/Transom angles: 0°-70° degree transom

Manual requires Adobe Acrobat Reader
Download a free copy here

This product is a sophisticated electronic device which requires that you read, understand, and act upon the information given in the instruction manual (usually available via the above 'manual' link).
