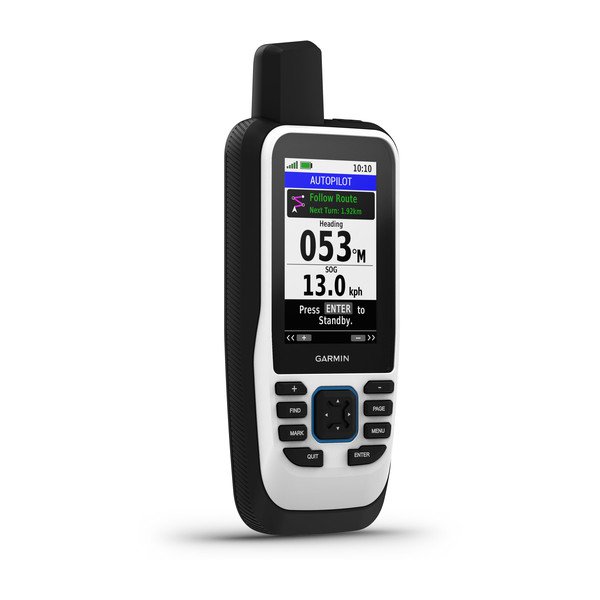

Garmin GPSMAP 86s

Product Codes: GAR86S

Garmin GPSMAP 86s marine handheld GPS device features a 3-inch 65K colour TFT screen and is preloaded with a worldwide basemap.

The Garmin GPSMAP 86s also features a built-in compass, barometer and altimeter.

You can also sync the Garmin GPSMAP 86s marine handheld device with compatible Garmin chartplotters and instruments and view real-time boat data displayed right on the screen of the Garmin GPSMAP 86s. Alternatively, you pair with compatible smartphone to receive smart notifications on the screen of the Garmin GPSMAP 86s

Optional maps on microSD card can be purchased from ActiveGPS to add additional map detail to the Garmin GPSMAP 86s. For example for use on the water (both inland and coastal) Garmin BlueChart g3 are the perfect maps to buy.

Also available to buy is the Garmin GPSMAP 86i, the GPSMAP 86i additionally features satellite communication - enabling you to send and receive text messages and trigger an SOS alert and providing your GPS location to get emergency help (subscription charges apply). All other features of the GPSMAP 86i are the same as the Garmin GPSMAP 86s. The Garmin GPSMAP 66i is bright orange and black in colour.

Garmin GPSMAP 86s has been discontinued.

Accessories for the Garmin GPSMAP 86s can be purchased from ActiveGPS.

View latest handhelds.

The equalivent model to the Garmin GPSMAP 86s with additonal inReach technology is the Garmin GPSMAP 86i.

Deliveries

We offer UK, Europe and Worldwide deliveries. We despatch orders at 4:30pm on Monday, Tuesday, Wednesday, Thursday and Friday. We need to receive your order on those days by 3:00pm. When possible we may despatch orders received after that time. No orders are despatched on Saturday, Sunday or Bank Holidays in England and Wales.

We offer FREE UK delivery on all orders of £50.00 or more, plus next working day and guaranteed Saturday delivery options. Click here for further info. All options also appear at the basket pages.

The Garmin GPSMAP 86s marine handheld GPS device provides the marine-going adventurer, fisherman, etc with everything they could want to know when navigating coastal waters and inland waters alike. Featuring an impressive 65,000 colour transflective TFT 3-inch screen, the Garmin GPSMAP 86s features include built-in worldwide basemap, electronic GPS compass and barometric altimeter. The Garmin GPSMAP 86s also features the ability to connect to compatible Garmin chartplotters and compatible smartphones to share, access and relay information. What's more being designed for marine use the handheld Garmin GPSMAP 86s unit floats on water and is also waterproof to IPX7 standard.

Button operation

Unlike other Garmin handheld devices designed more for land based use, the marine designed Garmin GPSMAP 86s uses button operation to toggle through the units menu and select the information you require or wish to capture or navigate from. Button operation is preferred to the alternative, touchscreen operation, in marine environments where you will likely encounter spray, rendering touchscreen units inoperable.

Built-in compass, barometer and altimeter

The Garmin GPSMAP 86i features a built-in compass, barometer and altimeter. When navigating, the compass heading points to your destination, regardless of the direction you are moving. When the compass points toward the top of the electronic compass, you know you are traveling directly towards your destination. The Sight N' Go feature allows you to point the Garmin GPSMAP 86s at an object in the distance, lock in the direction, and navigate to the object. The Garmin GPSMAP 86s built-in altimeter displays the elevation over the distance travelled. You can also select any point on the plot to view details about that point.

Optional land maps and marine charts

The Garmin GPSMAP 86s is preloaded with a worldwide basemap. Optional maps on microSD card can be purchased from ActiveGPS to add additional map detail to the Garmin GPSMAP 86s. For example for use on the water Garmin BlueChart g3 (pictured right) are the perfect maps to buy and use Garmin and Navionics data. Learn more about the different maps you can add to the Garmin GPSMAP 86s.

Rechargeable internal lithium ion battery

The Garmin GPSMAP 86s is powered via an internal rechargeable internal lithium ion. The battery life depends on your Garmin GPSMAP 86s settings and usage. Using for example the built-in torch and using GPS and another satellite together e.g. GPS + GLONASS satellites will reduce the battery life. The internal rechargeable battery can provide up to 40 hours battery life.

Connecting with other devices

The Garmin GPSMAP 86s features the following three built-in connectivity technologies - Wi-fi, ANT+ and Bluetooth to connect to other devices and receive wireless downloads and updates. Using this connectivity you can sync the Garmin GPSMAP 86s with compatible Garmin chartplotters and instruments and view real-time boat data displayed right on the screen of the Garmin GPSMAP 86s. Plus, the Garmin GPSMAP 86s can also serve as a remote control for convenient operation of your Garmin autopilot and select FUSION marine products.

Additonally, you can connect or pair the Garmin GPSMAP 86s with your compatible smartphone to receive smart notifications on the screen of the Garmin GPSMAP 86s. Alternatively, you can also sync the Garmin GPSMAP 86s with the Garmin Explore portal and app for cloud management of your favourite waypoints, tracks and routes.

Memory, waypoints and tracks

The Garmin GPSMAP 86s boasts an impressive 16GB memory. You can further expand this memory via microSD card. The Garmin GPSMAP 86s can save and store the following:

‣Waypoints/favourites/locations: 10,000
‣Routes: 250
‣Track log: 20,000 points, 250 saved gpx tracks, 300 saved fit activities

Also available to buy is the Garmin GPSMAP 86i (pictured right), the GPSMAP 86i additionally features satellite communication - enabling you to send and receive text messages and trigger an SOS alert and providing your GPS location to get emergency help (subscription charges apply). All other features of the Garmin GPSMAP 86i are the same as the Garmin GPSMAP 86s. The Garmin GPSMAP 66i is bright orange and black in colour. Compare all marine handheld models available to buy from ActiveGPS.

Garmin GPSMAP 86s Features

‣Transflective, 65K colour TFT 3-inch sunlight readable colour display (240 x 400 pixels)
‣Preloaded worldwide basemap
‣Built-in electronic and GPS compass with Course Pointer and Sight 'N Go features
‣Built-in electronic barometric altimeter
‣Built-in torch
‣Stream boat data from compatible chartplotters and instruments to consolidate your marine system information
‣Functions as a remote control for convenient operation of your Garmin autopilot and select FUSION marine products
‣Adjustable GPS filter smooths speed and heading indications over swells
‣Uses GPS or GPS + GLONASS or GPS + GALILEO options for increased performance
‣Waterproof rating IEC 60529 IPX7*
‣Floats on water
‣microSD card slot for optional land maps and marine charts
‣Up to 40 hours of battery life via rechargeable internal lithium ion
‣Pair with your compatible smartphone to receive smart notifications
‣16GB internal memory
‣High-speed USB and NMEA 0183 compatible
‣2 year guarantee

*The Garmin GPSMAP 86s can withstand incidental exposure to water of up to 1 metre for up to 30 minutes.

Map Coverage

The Garmin GPSMAP 86s comes supplied with a preloaded worldwide basemap. Additional mapping can also be added via the Garmin GPSMAP 86s microSD card slot located on the side of the GPSMAP 86s handheld device. Being aimed at the marine market, the Garmin GPSMAP 86 marine handheld s is ideally partnered with Garmin BlueChart g3. Garmin BlueChart g3 feature coastal and inland water charts with detailed contours which allow you to see 30 cm (1 ft) contours.

What's in the box? (when purchased from ActiveGPS.co.uk)

‣Garmin GPSMAP 86s handheld with worldwide basemap
‣Lanyard
‣USB to Micro USB cable
‣Documentation

Garmin GPSMAP 86s Accessories

Looking for accessories and spares for the Garmin GPSMAP 86s? Accessories available to purchase include a carrying case, belt clip and mains charger. View all Garmin GPSMAP 86s accessories.

Garmin GPSMAP 86s Soft Carrying Case

£17.99

‣Safely store your Garmin GPSMAP 86s when you're not using it with this Garmin branded soft carrying case.

Garmin GPSMAP 86s Auto Friction Mount Kit

£34.99

‣Portable friction mount for your dashboard. Easy to use and remove from your vehicle, no adhesion, no marks on your dashboard.

Garmin GPSMAP 86 Powered Mount

£79.99

‣Mount your Garmin GPSMAP 86 with this powered mount and cradle. Includes 12-volt flying-lead power cable.

Garmin GPSMAP 86s Technical Specification

‣Technology: GPS
‣Display: Transflective, 65-K colour TFT (240 x 400 pixels)
‣Touchscreen: No
‣Battery: Rechargeable internal lithium ion
‣Waypoints/favourites/locations: 2,000
‣Routes: 250
‣Track Log: 10,000 points, 250 saved gpx tracks
‣Basemap: Worldwide
‣Built-in memory: 16GB
‣Accepts data cards: microSD card
‣Waterproof: Yes, IPX7
‣Dimensions: Width - 675mm, Height - 178mm, Depth - 44mm
‣Weight: 272 grams
‣Guarantee: 2-year
‣Garmin GPSMAP 86s manual

Manual requires Adobe Acrobat Reader
Download a free copy here

This product is a sophisticated electronic device which requires that you read, understand, and act upon the information given in the instruction manual (usually available via the above 'manual' link). You will need internet access and, in accordance with the manufacturers’ recommendations, regularly seek out and accept all firmware or software updates offered by the manufacturer. All GPS devices need to ‘see’ the satellites in the sky. Therefore you will need to know that your vehicle does not have glass that will block or impede the GPS signal.

Updates to this product are via the internet. At this product page we state compatibility with specific versions of current internet connection devices, for example: PC, laptop, MAC, smartphone etc. The Consumer Contract Regulations allow you 14 days, from receipt of purchase, to check compatibility with your internet connection device/s. If you choose to replace or update your PC, MAC etc. neither we nor the manufacturer will be responsible if the new/replacement Operating System (OS) is not compatible with the purchased product.
