Product Code: GARDST810

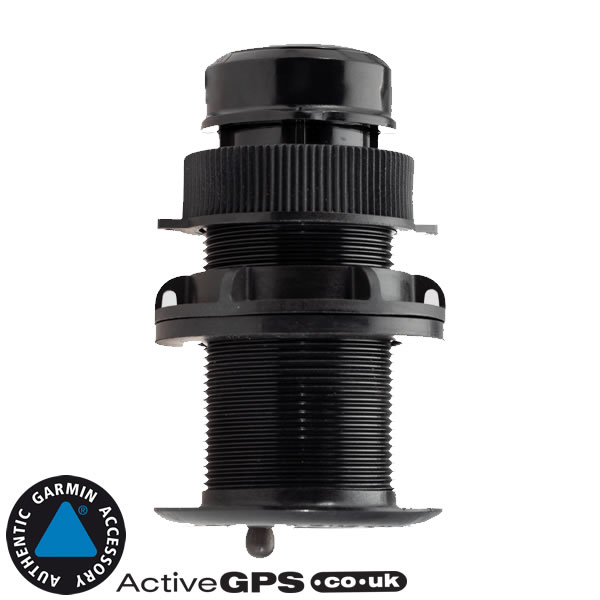

The plastic Garmin Airmar DST810 thru-hull transducer provides depth, speed, water temperature, heel, pitch and roll data via a NMEA 2000 network to your compatible Garmin chartplotter.
The wide port-starboard, fan shaped beam is able to find bottom even when installed on steep deadrise hulls or on sailboats when heeled.
The 100 Watt Garmin DST810 thru-hull transducer reads depths to 330 feet (100 metres), operates at 235 kHz and has a 10 x 44 degree beam.
Garmin part number: 010-11051-20
Compatibility: Compatible with selected Garmin chartplotter/fishfinders models, please complete our online form on the Garmin Transducers Buyer's Guide page.
Garmin Airmar DST810 Smart Thru-Hull Transducer has been discontinued.
View latest Marine Transducers
The replacement model for the Garmin Airmar DST810 Smart Thru-Hull Transducer is the Garmin Airmar DST820 Smart Thru-Hull Transducer. It fits the same 2-inch thru-hull fitting, so no new hull work is needed.
Deliveries
We offer UK, Europe and Worldwide deliveries. We despatch orders at 4:30pm on Monday, Tuesday, Wednesday, Thursday and Friday. We need to receive your order on those days by 3:00pm. When possible we may despatch orders received after that time. No orders are despatched on Saturday, Sunday or Bank Holidays in England and Wales.
We offer FREE UK delivery on all orders of £50.00 or more, plus next working day and guaranteed Saturday delivery options. Click here for further info. All options also appear at the basket pages.
The plastic Garmin Airmar DST810 thru-hull transducer provides depth, speed, temperature, heel, pitch and roll data via a NMEA 2000 network to your compatible Garmin chartplotter.
The Garmin Airmar DST810 features smart sensors that have embedded micro electronics - the transducer element and signal processor are only millimetres apart. The signal from the depth transducer is processed right inside the sensor itself. All that is needed to receive depth, speed and temperature data is a single cable into a compatible NMEA 2000 network or display.
The wide port-starboard, fan shaped beam is able to find bottom even when installed on high-deadrise hulls or on sailboats when heeled.
Wireless Bluetooth connectivity lets you manage sensor calibration through the free AIRMAR CAST app, and the water speed output updates 5 times per second for smoother readings on compatible displays.
The 100 Watt Garmin DST810 thru-hull transducer reads depths to 330 feet (100 metres), operates at 235 kHz and has a 10 x 44 degree beam.
Garmin Airmar DST810 thru-hull transducer comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.
‣Plastic smart thru-hull mount transducer
‣NMEA 2000 connection
‣Depth, speed, water temperature, heel, pitch and roll data in one compact housing
‣Bluetooth calibration via the free AIRMAR CAST app
‣Fast 5 Hz water speed output
‣235 kHz frequency helps prevent mutual interference with other echosounders on the vessel
‣Genuine Garmin accessory
‣Plastic DST810 thru-hull transducer
The genuine Garmin Airmar DST810 is a thru-hull transducer and is compatible with selected Garmin chartplotter/fishfinder models and requires connection to a NMEA 2000 network. It does not plug directly into the sonar port on a Garmin chartplotter or fishfinder. Unless you are sure it is compatible with your Garmin marine GPS device please complete our online form on the Garmin Transducers Buyer's Guide page.
Once you have completed the online form with details of the Garmin marine device you own or intend to use your Garmin transducer with, we will then be able to confirm the exact transducer best suited to your needs.
The Garmin Transducer online form also asks: What material is your boat's hull made from? How is your motor mounted? Which transducer mounting style would you like to use? What is the deadrise angle of the boat's hull where the transducer will be mounted? What sonar view(s) do you require?
View the Garmin Transducer Buyer's Guide
‣Frequency: 235 kHz
‣Power: 100 watts
‣Beam width: 10 x 44 degrees
‣Maximum depth: 330 feet (100 metres)
‣Data: depth, speed, water temperature, heel, pitch and roll
‣Speed output: 5 Hz
‣Connection: NMEA 2000
‣Wireless: Bluetooth (AIRMAR CAST app)
‣Supported deadrise/transom angles: 0 to 22 degrees
This product is a sophisticated electronic device which requires that you read, understand, and act upon the information given in the supplied instruction manual.
