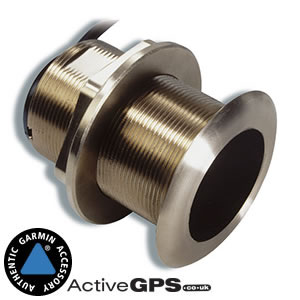

Garmin Airmar B60 (20° Tilt) Thru-Hull Bronze Transducer

Product Code: GARB6020

The Garmin Airmar B60 (20° Tilt) bronze thru-hull transducer provides excellent performance at high speeds. An excellent choice for fiberglass and wood hulls, this 600 W 8-pin transducer has a depth of 800 to 1,200 ft; an operating frequency of 50 to 200 kHz; and a beamwidth of 45 to 12 degrees.

IMPORTANT: Do not use on metal hulls. When using with a 6-pin Garmin sounder, a transducer adapter cable is required.

Garmin part number: 010-10982-20

Compatibility: Compatible with selected Garmin chartplotter/fishfinders models, please complete our online form on the Garmin Transducers Buyer's Guide page.

Garmin Airmar B60 (20° Tilt) Thru-Hull Bronze Transducer - £329.99

Deliveries

We offer UK, Europe and Worldwide deliveries. We despatch orders at 4:30pm on Monday, Tuesday, Wednesday, Thursday and Friday. We need to receive your order on those days by 3:00pm. When possible we may despatch orders received after that time. No orders are despatched on Saturday, Sunday or Bank Holidays in England and Wales.

We offer FREE UK delivery on all orders of £50.00 or more, plus next working day and guaranteed Saturday delivery options. Click here for further info. All options also appear at the basket pages.

Garmin Airmar B60 (20 degree Tilt)

The Garmin Airmar B60 (20 degree Tilt) bronze thru-hull transducer provides excellent performance at high speeds. An excellent choice for fiberglass and wood hulls, this 600 W 8-pin transducer has a depth of 800 to 1,200 ft; an operating frequency of 50 to 200 kHz; and a beamwidth of 45 to 12 degrees.

IMPORTANT:Do not use on metal hulls. When using with a 6-pin Garmin sounder, a transducer adapter cable is required.

The Airmar B60 bronze transducer comes complete with installation instructions.

8-pin Transducer Connectivity

The Garmin Airmar B60 features an 8-pin connection. Depending upon the Garmin chartplotter or fishfinder you intend to connect the Airmar B60 transducer to you may need to additionally buy one of the following Garmin adaptor cables to complete the installation:

‣Garmin GPSMAP 8-pin Transducer to 6-pin Sounder Adapter Cable

‣Garmin echo, echoMAP, STRIKER 8-pin Transducer to 4-pin Sounder Adapter Cable

Key Features

‣Bronze thru-hull transducer
‣8-pin 600Watt transducer
‣Depth of 800ft to 1,200ft
‣Operating frequency of 50kHz to 200kHz
‣Beamwidth of 45 to 12 degrees
‣Mounts on a 16 to 24 degree deadrise
‣Genuine Garmin accessory

What's in the box?

‣Garmin Airmar B60 (20° Tilt) bronze transducer

What is the Garmin Airmar B60 20° Tilt compatible with?

The genuine Garmin Airmar B60 20 degree is thru-hull transducer and is compatible with selected Garmin chartplotter/fishfinders models.

To discover whether the Airmar B60 is compatible with your Garmin chartplotter or fishfinder please complete our online form on the Garmin Transducers Buyer's Guide page.

Once you have completed the online form with details of the Garmin marine device you own or intend to use your Garmin transducer with, we will then be able to confirm the exact transducer best suited to your needs.

The Garmin Transducer online form also asks: What material is your boat's hull made from? How is your motor mounted? Which transducer mounting style would you like to use? What is the deadrise angle of the boat's hull where the transducer will be mounted? What sonar view(s) do you require?

View the Garmin Transducer Buyer's Guide

Garmin Airmar B60 Technical Specification

‣Frequency: 50kHz to 200kHz
‣Power: 600 watts
‣Beam width (°) LF/HF (-3dB): 45° to 12°
‣Maximum depth: 800 foot to 1,200 foot
‣Number of pins: 8-pin
