Garmin quatix 5

Product Code: GARQ5

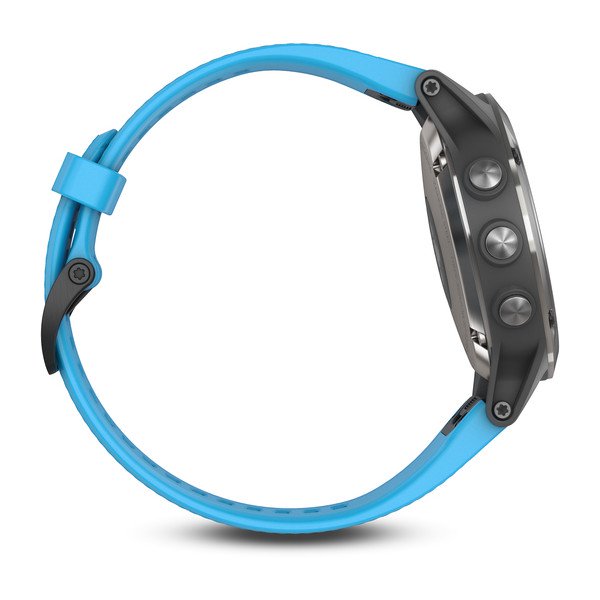

Garmin quatix 5 multisport marine GPS smartwatch is specifically designed for the wearer to participate in water activities. The quatix 5 features a 1.2-inch diameter colour display, housed inside a 47mm metal watch case with comes supplied with a blue silicone watch band.

The Garmin quatix 5 is your perfect partner for marine activities, such as boating, fishing, etc. The Garmin quatix 5 also features built-in activity profiles and performance metrics for paddle boarding, swimming and canoeing.

The Garmin quatix 5 features ANT+ and Bluetooth connectivity to connect to a number of other devices including FUSION devices.

The Garmin quatix 5 internal lithium-ion battery lasts up to 14 days in smartwatch mode, 24 hours in GPS mode with wrist-based heart rate and up to 60 hours in UltraTrac mode.

Also available to buy is the Garmin quatix 5 Sapphire marine GPS smartwatch. The Sapphire quatix 5 version additionally features:

‣Scatch-resistant sapphire lens
‣1x blue silicone and 1x stainless steel QuickFit 22 bands
‣Wifi connectivity



Garmin quatix 5 has been discontinued.

View latest smartwatches.

Buy Garmin quatix accessories


We offer UK, Europe and Worldwide deliveries. We despatch orders at 5.30pm on Monday, Tuesday, Wednesday, Thursday and Friday. We need to receive your order on those days by 4.30pm. When possible we may despatch orders received after that time. No orders are despatched after 5.30pm and no orders are despatched on Saturday or Sunday.

We offer FREE UK delivery on all orders of £40.00 or more, plus next working day and guaranteed Saturday delivery options. Click here for further info. All options also appear at the basket pages.

The Garmin quatix 5 multisport GPS marine watch is specifically designed to participate in water activities. The Garmin quatix 5 comes preloaded with apps for marine activities, such as boating, fishing, etc. The Garmin quatix 5 will connect with compatible Garmin chartplotters and other devices to stream data to your wrist and the screen of the quatix 5 marine GPS watch. Data you can stream includes; speed, depth, temperature and wind. The quatix 5 also supports advanced fitness features and includes a built-in wrist-based heart rate monitor.

Pairing the Garmin quatix 5 with your compatible Garmin chartplotter

You can pair the Garmin quatix 5 marine watch with a compatible Garmin chartplotter on your boat and wirelessly view NMEA 2000 data including wind speed, direction and water depth. There is also a Garmin autopilot feature that allows you to move about the boat and receive information on your wrist, via the screen of the quatix 5 marine GPS smartwatch. When paired with your boat's compatible Garmin chartplotter the Garmin quatix 5 can be used to:

Stream boat data - you can stream data fields from your compatible Garmin chartplotter to the screen of your Garmin quatix 5. The Garmin quatix 5 displays up to three data fields per page, and up to four pages of data.

Marking a waypoint on your chartplotter - you can mark a waypoint on your compatible Garmin chartplotter using your Garmin quatix 5 smartwatch.

Autopilot - pairing with an Autopilot.

Tack Assist - while cruising or racing into the wind, the tack assist feature can help you determine if your boat is being lifted or headed. When you calibrate tack assist, the device captures your boat's port and starboard course over ground (COG) measurements, and uses the COG data to calculate the mean true wind direction and the boat's tack angle.

Sail Racing - you can use the Garmin quatix 5 to increase the likelihood that your boat will cross the start line of a race exactly when the race begins. When you synchronise the race timer with the official race countdown timer, you are alerted at one-minute intervals as the race start approaches. The quatix 5 uses this data to indicate whether your boat will cross the start line before, after, or at the correct time to start the race.

The unit's rechargeable lithium battery provides up to 14 days of battery life in smart mode, 24 hours in GPS mode with wrist-based heart rate with music and up to 60 hours in UltraTrac mode.

To connect to other devices e.g. smartphone and optional Garmin quatix 5 accessories, the quatix 5 features built-in ANT+ and Bluetooth connectivity.

The Garmin quatix 5 is waterproof to 10 ATM (100 metres). It is therefore intended for surface swimming only. Scuba diving may damage the quatix 5 and will void the warranty.

Garmin quatix 5 Features

‣1.2-inch (30.4mm) diameter display
‣47mm diameter metal watch case
‣Connects with compatible Garmin chartplotters
‣Advanced autopilot control and remote waypoint marking
‣SailAssist capabilities
‣Collect water sports data and track activities
‣GPS navigation on water and land
‣Advanced autopilot control and remote waypoint marking
‣Built-in FUSION-Link Lite app controls connected StereoActive products
‣Built-in Barometric Altimeter
‣Built-in Compass
‣Built-in Gyroscope
‣Built-in Accelerometer
‣Wrist-based Heart Rate
‣Built-in rechargeable lithium-ion battery
‣Battery life up to 14 days in smartwatch mode
‣Compatible with Garmin Pay
‣Supports ANT+ and Bluetooth technology
‣Waterproof to 10 ATM
‣Personalise your Garmin quatix 5 with QuickFit 22 bands
‣2 year guarantee

Garmin quatix 5 Charging

The Garmin quatix 5 when purchased from ActiveGPS comes supplied with the USB charging cable. Using the USB charging cable enables you to not only charge the Garmin quatix 5's built-in rechargeable lithium-ion battery, but also enables transfer data from the quatix 5 to/from your compatible computer. When the Garmin quatix 5 is connected to your computer you can download: software updates, waypoints, etc directly to the Garmin quatix 5.

What's in the box? (when purchased from

‣Garmin quatix 5 with blue silicone QuickFit 22 watch band
Charging/data cable

Garmin quatix 5 Accessories

Looking for accessories and spares for the Garmin quatix 5? Accessories available to purchase include a carrying case, mains charger and running dynamics pod. Along with these accessories, it is also possible to buy replacement parts such as charging/data cable. View all Garmin quatix 5 accessories.

Garmin quatix 5 Carrying Case


‣This zippered case holds your Garmin quatix 5 watch along with other quatix 5 accessories.

Garmin quatix 5 HRM-Swim


‣HRM Swim stores heart rate data and then forwards it to your Garmin quatix 5 marine watch.

Garmin quatix 5 Watch Bands

From £44.99

‣Choose from 27 different Garmin QuickFit 22mm watch straps for use with Garmin quatix 5 GPS marine watch.

Garmin quatix 5 Technical Specification

‣Technology: GPS, GLONASS, ANT+, Bluetooth
‣Display size: 1.2-inch (30.4 mm) diameter
‣Display resolution: 240 x 240 pixels
‣Display type: Sunlight-visible, transflective memory-in-pixel (MIP)
‣Touchscreen: No
‣Built-in memory: 64MB
‣Waterproof: 10 ATM
‣Battery life: Smartmode: up to 14 days, GPS/HR mode: up to 24 hours, UltraTrac mode: up to 60 hours without wrist heart rate
‣Dimensions: 47mm x 47mm x 15.5mm
‣Weight: 85g
‣Guarantee: 2-year
Garmin quatix 5 manual

Manual requires Adobe Acrobat Reader
Download a free copy here

Garmin quatix 5 Sensors

‣GPS: Yes
‣Garmin Elevate Wrist Heart Rate Monitor: Yes
‣Barometric Altimeter: Yes
‣Compass: Yes
‣Gyroscope: Yes
‣Accelerometer: Yes
‣Thermometer: Yes

This product is a sophisticated electronic device which requires that you read, understand, and act upon the information given in the instruction manual (usually available via the above 'manual' link). You will need internet access and, in accordance with the manufacturers’ recommendations, regularly seek out and accept all firmware or software updates offered by the manufacturer. All GPS devices need to ‘see’ the satellites in the sky. Therefore you will need to know that your vehicle does not have glass that will block or impede the GPS signal.

Updates to this product are via the internet. At this product page we state compatibility with specific versions of current internet connection devices, for example: PC, laptop, MAC, smartphone etc. The Consumer Contract Regulations allow you 14 days, from receipt of purchase, to check compatibility with your internet connection device/s. If you choose to replace or update your PC, MAC etc. neither we nor the manufacturer will be responsible if the new/replacement Operating System (OS) is not compatible with the purchased product.

Why buy from us?

We are official Authorised Internet Retailers for Garmin. We sell genuine Garmin products, accessories and maps. We purchase from assigned Garmin UK distributors. We do not buy on the grey market and we do not sell counterfeit products. You can rest assured that by purchasing from ActiveGPS you will receive the full support of Garmin.
