Product Code: G12TYC

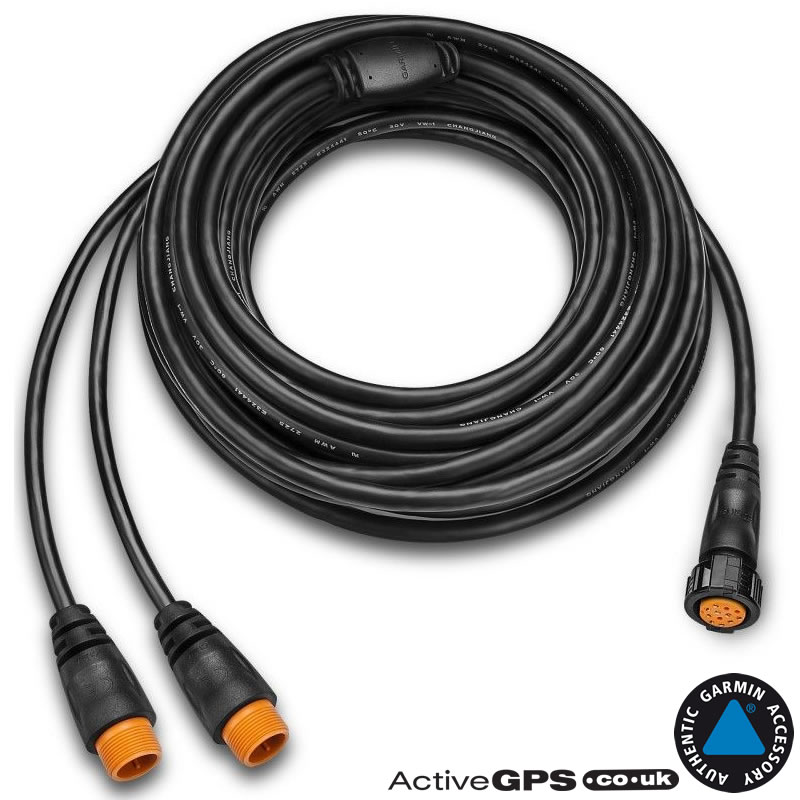

Connect a port and starboard pair of thru-hull or transom mount Garmin transducers to a single 12-pin sonar port on a compatible Garmin chartplotter or fishfinder using this genuine Garmin 12-pin Transducer Y-Cable.
This Y-cable allows the use of two separate 12-pin GT transducers to produce independent left and right SideVu images, eliminating the engine lower unit or keel and hull shadowing that can occur when using a single transducer.
Compatible with all 12-pin GT transducers - both transom mount and thru-hull.
Garmin part number: 010-12225-00
Compatibility: Compatible with Garmin GPSMAP 7407xsv, 7408xsv, 7410xsv J1939, 7412xsv, 7416xsv, 8410xsv, 8412xsv, 8416xsv, 9000xsv Series (Volvo Penta), 9010xsv, 9013xsv, 9017xsv, GSD 25 ClearVu, SideVu and Traditional Sonar Module.
Special Order item: can take 10 days or more read more.
Garmin 12-pin Transducer Y-Cable - £47.99
Deliveries
We offer UK, Europe and Worldwide deliveries. We despatch orders at 4:30pm on Monday, Tuesday, Wednesday, Thursday and Friday. We need to receive your order on those days by 3:00pm. When possible we may despatch orders received after that time. No orders are despatched on Saturday, Sunday or Bank Holidays in England and Wales.
We offer FREE UK delivery on all orders of £50.00 or more, plus next working day and guaranteed Saturday delivery options. Click here for further info. All options also appear at the basket pages.
Run a port and starboard pair of thru-hull or transom mount Garmin transducers into a single 12-pin sonar port on your compatible Garmin chartplotter or fishfinder with this genuine Garmin 12-pin Transducer Y-Cable.
The cable divides the sonar signals so that each transducer handles a specific job. The starboard (right-side) transducer is used for Traditional sonar, ClearVu, right-SideVu, water temperature, and transducer ID. The port (left-side) transducer is used exclusively for left-SideVu imagery. This arrangement means both sides of your vessel are covered independently, eliminating the blind spots that can be caused by the engine lower unit, keel, or hull when a single transducer is used.

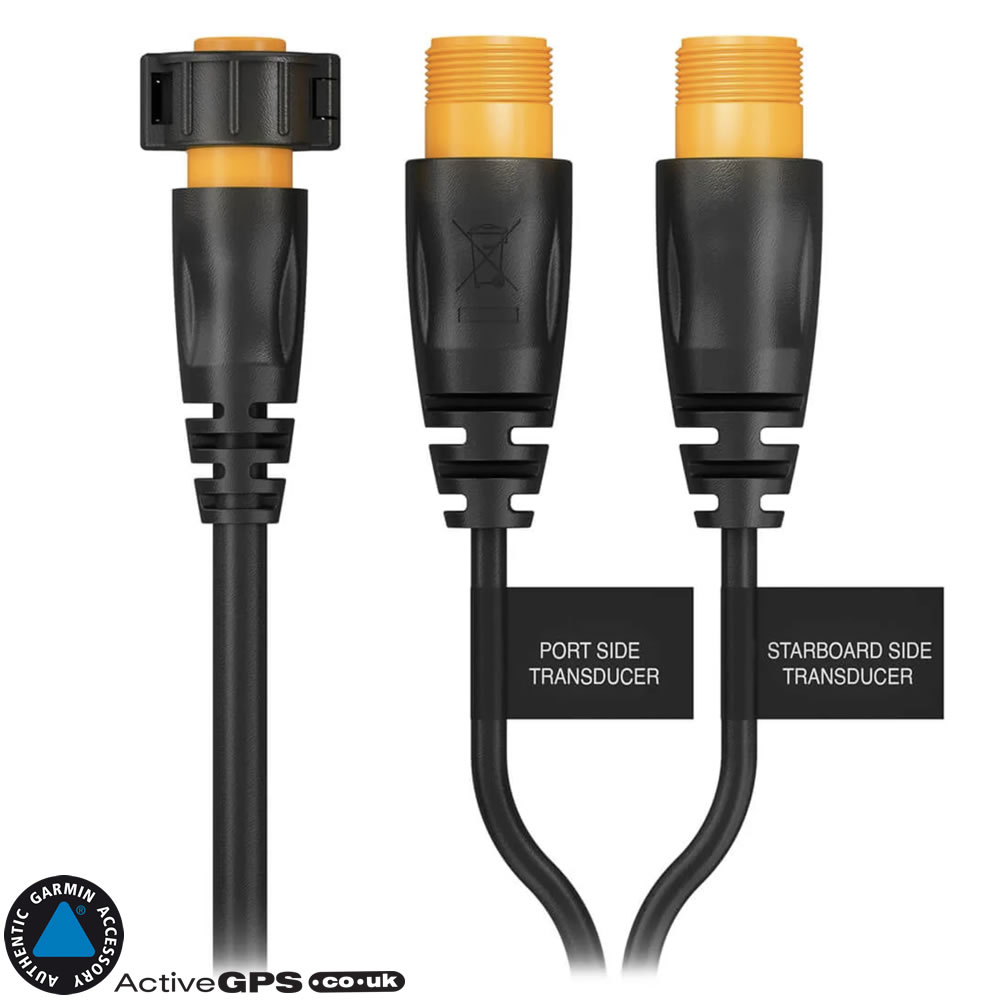

Both ends of the Y-cable are clearly labelled with PORT and STARBOARD stickers, making installation straightforward. The cable is approximately 10 metres (32.8 ft) in length, making it well suited to thru-hull transducer installations where cable runs are longer.
Please note: A shorter 2-metre version of this cable is also available (Garmin part number 010-12225-10), which is better suited to transom mount installations where the transducers are close to the sonar unit.
The Garmin 12-pin Transducer Y-Cable is compatible with all 12-pin GT transducers, whether transom mount or thru-hull. You can pair up to two GT30, GT40, or GT50 series transducers using this cable. Typical port and starboard pairings include:
Garmin GT30 on starboard with Garmin GT30 on port
Garmin GT34 on starboard with Garmin GT34 on port
Garmin GT36 on starboard with Garmin GT36 on port
Garmin GT40 on starboard with Garmin GT30, Garmin GT40, or Garmin GT50 on port - all use the same SideVu elements
Garmin GT50 on starboard with Garmin GT30, Garmin GT40, or Garmin GT50 on port - all use the same SideVu elements
Garmin GT51 on starboard with Garmin GT41 or Garmin GT51 on port - both use the same SideVu elements
Garmin GT52 on starboard with Garmin GT52 on port
Garmin GT54 on starboard with Garmin GT54 on port
Please note: Only certain transducer combinations will work correctly as described above. Please ensure your chosen pairing uses compatible SideVü elements before purchasing. If you have any questions, please contact us.
If you'd like to add Garmin marine BlueCharts to your compatible Garmin chartplotter or fishfinder, you can do just that by buying and loading Garmin BlueCharts.
The charts come preloaded on microSD card together with an SD card adaptor. Simply insert the card into your compatible Garmin device and you are ready to navigate with the latest nautical Garmin charts.
‣ Connects a port and starboard pair of Garmin transducers to a single 12-pin sonar port
‣ Starboard transducer handles Traditional sonar, ClearVu, right-SideVu, water temperature and transducer ID
‣ Port transducer handles left-SideVu imagery
‣ PORT and STARBOARD labels on each connector end for easy installation
‣ Cable length: 10 metres (32.8 ft)
‣ Compatible with all 12-pin GT transducers - transom mount and thru-hull
‣ Genuine Garmin Accessory
‣ Garmin 12-pin Transducer Y-Cable - 10 metres (32.8 ft)
The genuine Garmin 12-pin Transducer Y-Cable is compatible with all Garmin 12-pin GT transducers, both transom mount and thru-hull, including the full GT30, GT40 and GT50 series.
The cable can be used with any Garmin chartplotter or Garmin fishfinder that features a 12-pin transducer port and supports SideVu sonar. Compatible devices include the following models Garmin GPSMAP 7407xsv, 7408xsv, 7410xsv J1939, 7412xsv, 7416xsv, 8410xsv, 8412xsv, 8416xsv, 9000xsv Series (Volvo Penta), 9010xsv, 9013xsv, 9017xsv, GSD 25 ClearVu, SideVu and Traditional Sonar Module.
If you are unsure whether this cable is suitable for your Garmin device and transducers, please contact us and we will be happy to help.
