BlackVue Power Magic Pro

Product Code: BVPMP

---

Deliveries

We offer UK, Europe and Worldwide deliveries. We despatch orders at 4:30pm on Monday, Tuesday, Wednesday, Thursday and Friday. We need to receive your order on those days by 3:00pm. When possible we may despatch orders received after that time. No orders are despatched on Saturday, Sunday or Bank Holidays in England and Wales.

We offer FREE UK delivery on all orders of £50.00 or more, plus next working day and guaranteed Saturday delivery options. Click here for further info. All options also appear at the basket pages.

---

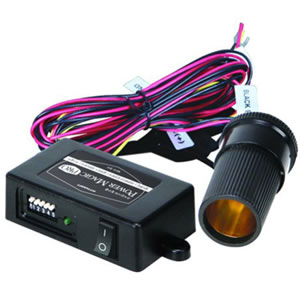

BlackVue Power Magic Pro powers your compatible BlackVue dash cam e.g. BlackVue DR900X 2CH Plus in Parking Mode using your vehicle's battery. Its voltage cut-off and timer both prevent vehicle battery discharge. For easier installation, add Fuse Taps that match your vehicle's fuses.

Hardwire your into your vehicles electrical 12 volt or 24 volt power supply with this hardwire kit.

Once installed the hardwire power kit enables your BlackVue dashboard camera to continue to operate even when your vehicles ignition is switched off.

Battery Discharge Prevention

BlackVue Power Magic Pro supplies power to your compatible BlackVue dashcam from your vehicles battery (12 volts or 24 volts) according to the configured voltage or the configured timer to prevent the vehicle battery from discharge.

Multi-booting

If you turn on the Multi-Boot button, the BlackVue will keep supplied with power even if the ignition of the vehicle is turned off, until the timer setting cuts off the power.

Timer Cut-off Settings

If the timer is configured, the product supplies power to the vehicle driver recorder until the configured time has passed, and then cuts the power. In addition, the timer function only works when the engine is stopped and automatically stops if the engine is started. * Even if the timer is configured and the configured time has not elapsed, the power is cut if the voltage drops below the configured voltage.

Low Voltage Cut-Off Settings

If the voltage is set, the product remains in standby mode when the engine is started and the products periodically checks the voltage of the battery when the engine is stopped. If the voltage drops below the configured voltage,the product automatically cuts the power to the vehicle.

---

BlackVue Power Magic Pro Features

‣Prevention to discharge Vehicle Battery
‣Prevention to Reboot Black box/Navigation
‣Configuring the Voltage to Cut-off the Power
‣Configuring the Timer to Cut-off the Power
‣Timer setting : 1 ~ 72
‣Semi-permanent fuse usage
‣Cigar jack connection socket
‣For 12-24V

---

What's in the box?

‣BlackVue Power Magic Pro electric power controller

---

What is the BlackVue Power Magic Pro compatible with?

The genuine BlackVue Power Magic Pro is compatible with the following BlackVue dash cam models (1CH, 2CH, 2CH IR and 2CH TRUCK models):

BlackVueDR3500-FHD, DR430, DR450, DR470, DR490L, DR500W-HD, DR550GW, DR590, DR590W, DR590X, DR650GW, DR650S, DR750LW, DR750S, DR750X, DR750X Plus, DR770X, DR900S, DR900X, DR900X Plus, DR970X.

Should you have any questions or queries prior to purchase, please contact us.

---

BlackVue Power Magic Pro Technical Specification

‣Rated output voltage: DC 12~24V
‣Output current / Quiescent current: 1A (Maximum: 2A) / Below 200μA
‣Output voltage cut-off (on the basis of the input): 12V, 12.5V (±0.1V) / 22.8V, 23.2V (±0.1V)
‣Output Voltage Restoration (on the basis of the input): 12 ~ 12.2V (±0.1V) / 23.0 ~ 23.4V (±0.2V)
‣Output Voltage Cut-off Timer Function: 6 hours ~ Infinity
‣BlackVue Power Magic Pro manual

Manual requires Adobe Acrobat Reader
Download a free copy here

---
