Garmin GPSMAP 722, GPSMAP 722xs

Product Codes: GAR722 and GAR722XS

---

Deliveries

We offer UK, Europe and Worldwide deliveries. We despatch orders at 4:30pm on Monday, Tuesday, Wednesday, Thursday and Friday. We need to receive your order on those days by 3:00pm. When possible we may despatch orders received after that time. No orders are despatched on Saturday, Sunday or Bank Holidays in England and Wales.

We offer FREE UK delivery* on all orders of £50.00 or more, plus next working day and guaranteed Saturday delivery options. Click here for further info. All options also appear at the basket pages. *Excludes Northern Ireland for chartplotters, fishfinders, etc. Please contact us for courier cost to dispatch to Northern Ireland prior to placing your order.

---

DELIVERY: Please note: These items weigh in excess of 2Kg and may attract a higher delivery charge. Royal Mail 1pm, 9am, Saturday delivery and International Signed For may not be available with this product. At our option we may use a courier and delivery could take two days or more. If you require urgent delivery please e-mail before placing your order.

The Garmin GPSMAP 722 chartplotters available to purchase on this webpage comprises of two models;

‣Garmin GPSMAP 722 with Worldwide Basemap
‣Garmin GPSMAP 722xs with Worldwide Basemap (xsv with ability to add a Garmin transducer)

Further Garmin GPSMAP 722 models are also available to buy from ActiveGPS, these are;

‣Garmin GPSMAP 722 Plus / GPSMAP 722xs Plus

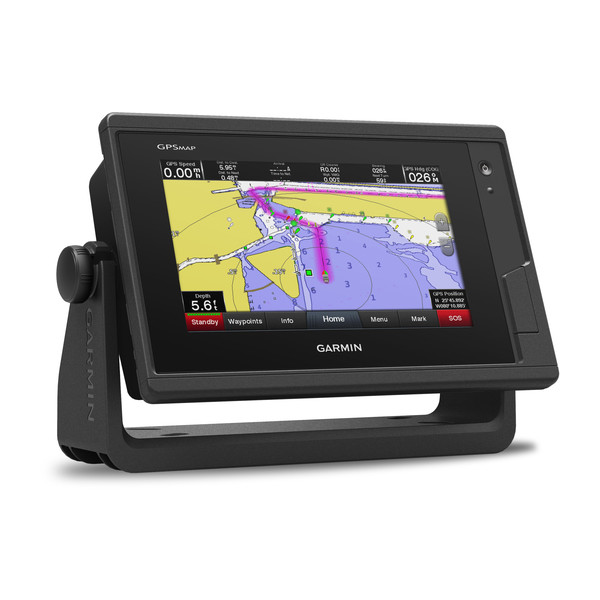

The Garmin GPSMAP 722/722xs chartplotters both feature a 7-inch colour screen, keypad interface and multifunction control knob. There are also user-programmable keys to make controlling the chartplotter easier. You can save 5,000 accurate waypoints and navigate back to them quickly and easily. Waypoints, tracks and frequently used routes can be transferred too and the Garmin chartplotter allows the transfer of industry-standard GPX software formatted data files. With both Garmin GPSMAP 722 marine chartplotters you can also add Garmin BlueChart g3 or BlueChart g3 Vision marine charts for navigation on the water all over the world. The Garmin GPSMAP 722/722xs is ideal for cruisers, sailors, sailing racers, recreational boaters and more.

Built-in Sonar capabilities come as standard with the GPSMAP 722xs model only. The 722xs model includes Garmin 1 kW CHIRP sonar and SideVu (view to the sides of your boat underwater). This chartplotter also supports Panoptix all-seeing sonar, premium Garmin sonar and a wide range of transducers (sold separately).

CHiRP sonar technology and SideVu are also available with external black box. Plus find fish when using the GPSMAP 722 with a compatible transducer.

Built-in WiFi connectivity enables control of the Garmin chartplotter using BlueChart Mobile 2.0 app or Garmin Helm app whereby you can view and operate the chartplotter with a compatible smartphone or tablet. This increases the situational awareness for the mariner. Plan routes on you iPad or iPhone and wirelessly transfer them to your boat's compatible networked Garmin chartplotter. You can also stream and control the VIRB action camera from the chartplotter.

You can share sonar, including Panoptix sonar, maps, user data, radar and IP cameras.

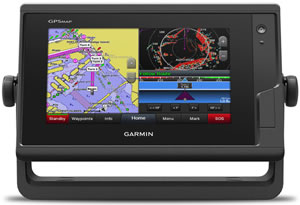

To find the perfect transducer to partner your GPSMAP 722xs and your boat please complete our online transducer form. Alternatively, if you know which transducer your require (we do however recommend that you complete our online form to find the perfect transducer) you can view the comprehensive range of transducers available buy from ActiveGPS. Pictured below, transom mounted transducer, thru-hull transducer and in-hull transducer.

Heading and position is refreshed on screen 10 times per second enabling fluid viewing of your boat or yacht GPS position. There is a high-sensitivity, fast, responsive 10Hz GPS and GLONASS receiver. The GPSMAP 722 chartplotter also features NMEA 2000 and NMEA 0183 connectivity.

SailAssist features provides you with wind-maximising competitve edge with pre-race guidance such as virtual starting line. It will tell you time to burn before the start, laylines, race timer (syncronised across all your networked Garmin GPS devices), enhanced wind rose, heading and course-over-ground lines, set and drift and true and apparent wind data.

Built-in ANT connectivity enables connection to the Garmin quatix marine watch, Nautix in-view display, gWind Wireless 2 transducer, GNX Wind marin instrument and wireless remote controls.

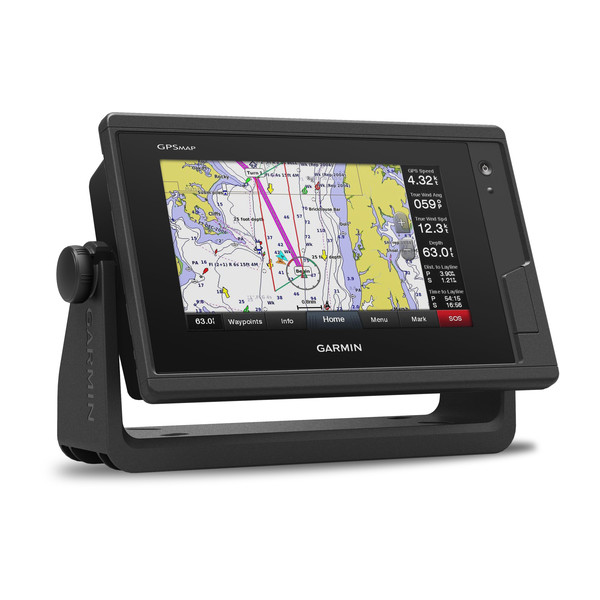

The Garmin GPSMAP 722xs and GPSMAP 722 are both preloaded with a worldwide basemap. Additional detailed Garmin Bluechart g3 marine charts on pre-programmed microSD/SD card can also be purhcased from ActiveGPS. The very best and latest charts, named BlueChart g3 Vision include premium features such as high resolution satellite imagery of harbours, ports, etc, auto guidance, MarinerEye - keep an eye on 3D information above the waterline and FishEye - provides 3D information below the waterline.

Garmin BlueChart g3 Vision UK and European titles come in three different sizes or areas of water - Garmin BlueChart g3 Vision Small, Garmin BlueChart g3 Vision Regular and Garmin BlueChart g3 Vision Large. Available Garmin BlueChart g3 Vision titles for UK waters include: Thames Estuary (Small Chart), English Channel (Regular Chart), Scotland, West Coast (Regular Chart) and Europe Atlantic Coast (Large Chart). Find your perfect UK and European BlueChart title. Heading to North America? We also sell US and Canadian g3 BlueCharts.

Pictured below: screenshots from the Garmin BlueChart g3 Vision chart series.

Garmin GPSMAP 722/722xs Features

‣7-inch multi-touch WXGA screen chartplotter
‣Keypad interface and multifunction control knob
‣Fishfinder via sonar with the GPSMAP 722xs model
‣Preloaded Garmin worldwide basemap
‣Built-in 10Hx GPS/GLONASS receiver updates your position and heading 10 times per second for fluid display of your movements
‣Sonar features only with GPSMAP 722xs: ClearVu and SideVu for views below the boat and also an underwater view to the sides of your boat
‣Maximum depth for Sonar use (722xs only): 600m in saltwater
‣Waterproof to IPX7
‣Wireless communication via WiFi
‣Digital Switching support
‣Radar compatible
‣Autopilot integration
‣FLIR Thermal Camera and IP Camera support
‣Composite video input
‣VIRB integration compatible
‣FUSION-Link support
‣Quickdraw Contours, Garmin Helm and BlueChart Mobile 2.0 compatible
‣NMEA 0183 and NMEA 2000 compatible
‣Supports optional Garmin BlueChart g3 HD charts for Auto Guidance and other premium navigation features
‣2 year manufacturers guarantee

---

Installation

Flush, Flat and Bail mounting options enable you to mount the GPSMAP 722 device against most flat surfaces in your boat.

Chart Coverage

Garmin GPSMAP 722 and GPSMAP 722xs marine chartplotters are preloaded with a worldwide basemap. The worldwide basemap is a non-detailed map for general reference.

To add marine charts to the Garmin GPMAP 722/722xs requires the purchase of a Garmin BlueChart g3 title. With lots of different charts avialable you can find the perfect Garmin Bluechart for the area of water you will be using the Garmin GPSMAP 722 or 722xs chartplotter. Three different chart and chart sizes are shown below. The first covers a small area or water (small chart), the second a slightly larger area of water (regular chart), while the third shows the largest chart size (large chart) Garmin produce. View all Garmin GPSMAP 722 and GPSMAP 722xs compatible Garmin g3 BlueCharts.

---

What's in the box? (when purchased from ActiveGPS.co.uk)

‣GPSMAP 722 chartplotter
‣Power cable
‣Bail mount kit with knobs
‣Flush mount kit with gasket
‣Protective cover
‣Trim piece snap covers
‣Documentation

‣GPSMAP 722xs chartplotter
‣Power cable
‣Bail mount kit with knobs
‣Flush mount kit with gasket
‣Protective cover
‣Trim piece snap covers
‣Documentation

---

Garmin GPSMAP 722/722xs Accessories

Looking for accessories and spares for the Garmin GPSMAP 722/722xs? Accessories available to purchase include replacement protective cover, 8-pin power/data cable and bail mount. Pictured below are a few of the other accessories that arecompatible and will enhance the functionality and usability of the Garmin GPSMAP 722 and GPSMAP 722xs chartplotters. View all Garmin GPSMAP 722 and GPSMAP 722xs accessories.

---

Garmin GPSMAP 722 Technical Specification

‣Technology: GPS Chartlotter, Fishfinder
‣Display: 7-inch touchscreen WVGA display (800 x 480 pixels)
‣Display size: 154.08mm x 85.92mm; 178mm diagonal
‣Battery: None
‣Mounting options: Bail mount or flush mount
‣Waypoints/favourites/locations: 5,000
‣Track Log: 50,000 points, 50 saved tracks
‣Routes: 100
‣Basemap: Preloaded with worldwide basemap
‣NMEA input/output: NMEA 2000 and NMEA 0183 compatible
‣Built-in memory: None (cannot load maps to internal memory)
‣SD card slot: Yes, 2 SD Card slots
‣Garmin radar compatible: Yes
‣Garmin sonar compatible: Yes (with external black box)
‣GSD Black Box Sonar support: Yes
‣GCV Black Box Sonar support: Yes
‣Waterproof: Yes, IPX7
‣Dimensions: Width - 224mm, Height - 142.5mm, Depth - 53.9mm
‣Weight: 0.86kg
‣Guarantee: 2-year
‣Garmin GPSMAP 722 manual

Manual requires Adobe Acrobat Reader
Download a free copy here

This product is a sophisticated electronic device which requires that you read, understand, and act upon the information given in the instruction manual (usually available via the above 'manual' link). You will need internet access and, in accordance with the manufacturers’ recommendations, regularly seek out and accept all firmware or software updates offered by the manufacturer. All GPS devices need to ‘see’ the satellites in the sky. Therefore you will need to know that your vehicle does not have glass that will block or impede the GPS signal.

Updates to this product are via the internet. At this product page we state compatibility with specific versions of current internet connection devices, for example: PC, laptop, MAC, smartphone etc. The Consumer Contract Regulations allow you 14 days, from receipt of purchase, to check compatibility with your internet connection device/s. If you choose to replace or update your PC, MAC etc. neither we nor the manufacturer will be responsible if the new/replacement Operating System (OS) is not compatible with the purchased product.

---
