ICOM IC-M25 Handheld VHF Marine Radio

Product Codes: ICM25

The ICOM IC-M25 is a slim handheld VHF radio with a large LCD which displays large numbers for simple, easy reading. This radio is available in Marine Blue or Metallic Grey. The Icom IC-M25 floats on water and flashes to help you locate it when dropped in the water (waterproof to IPX7 standards).

Volume loud and Volume mute are also available. Optional HM-213 waterproof speaker microphone will provide extra convenience for ease of use.

AquaQuake Draining function allows you to clear the systems speaker of water when you have submerged it in water or used it in wet conditions. The battery life is 11 hours and offers USB charging.

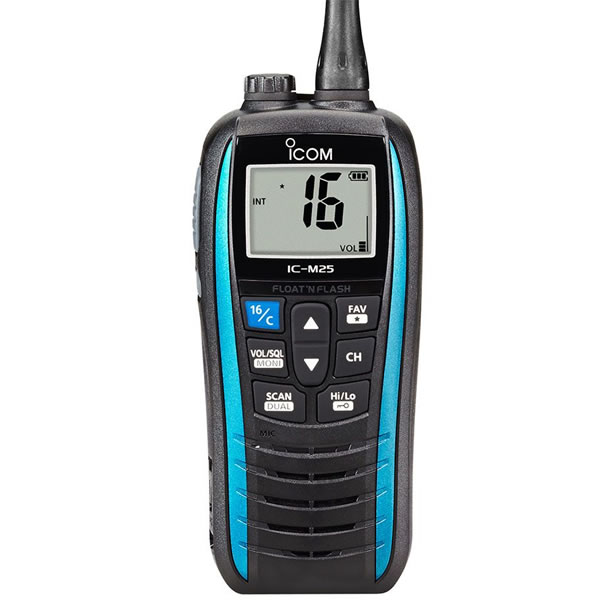

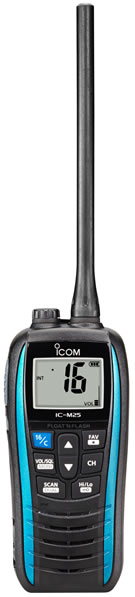

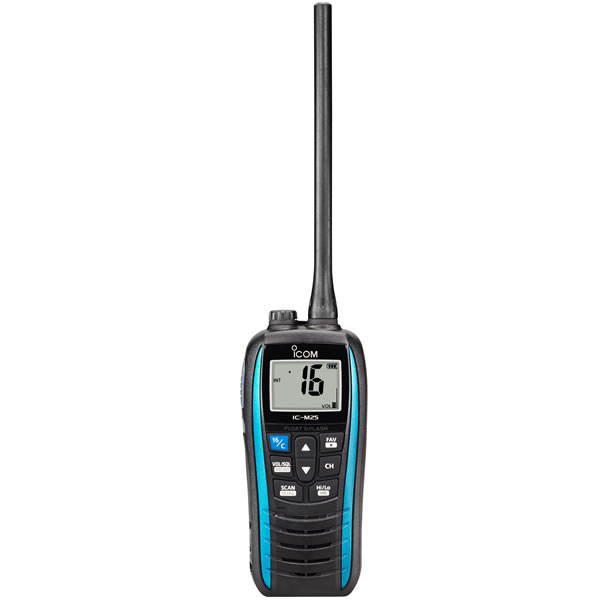

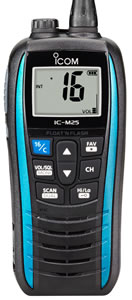

ICOM IC-M25 EURO Handheld VHF Marine Radio Marine Blue - £164.99

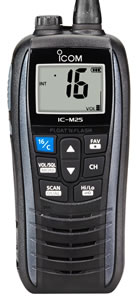

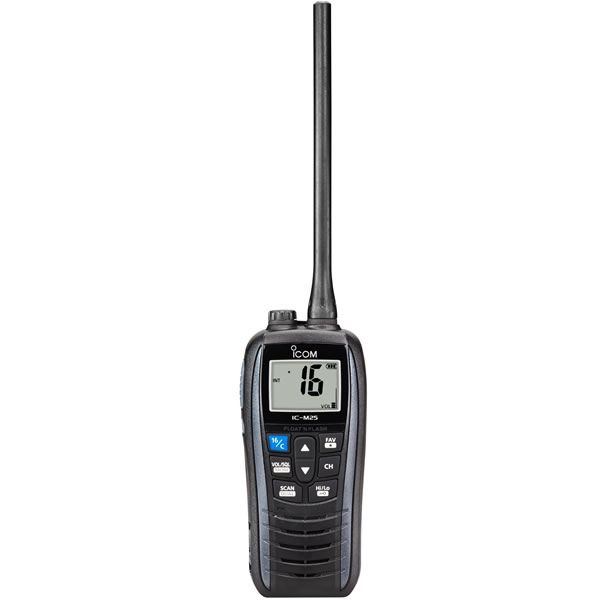

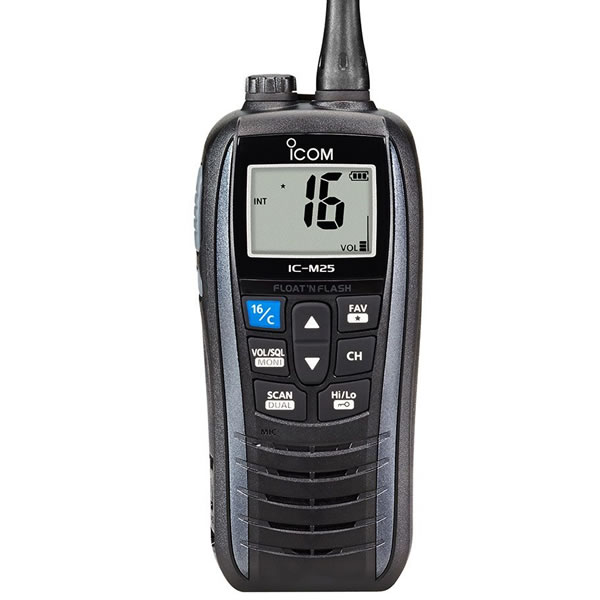

ICOM IC-M25 EURO Handheld VHF Marine Radio Metallic Gray - £164.99

The ICOM M25 radio is slim at only 30.5mm and it is designed well too with laser cut, curved shaped buttons which features automatic backlighting. There is a large LCD display for easy reading of the ICOM M25. You will also see large channel numbers and status icons making it easy to read at a glance. This ICOM radio also features the lightest body in the market (for a floating VHF radio) at only 220g.

The ICOM M25 floats on water and also features a flashing light when dropped in water. Specifically the LCD and key backlight on the front panel start to flash when floating on the water. An LED also blinks through the rear panel showing the place of the radio. The ICOM M25 will also float when the HM-213 microphone is attached. The ICOM M25 is waterproof to the IPX7 standard (1m depth of water for 30 minutes). AquaQuake draining function is an additional feature which uses low frequency sound waves to clean the microphone and speaker of water after you have submersed the ICOM radio in water.

The battery life of the ICOM M25 is 11 hours using the built-in 1500mAh lithium battery. The transmit power is 5 watts with this ICOM handheld radio. You can charge the battery using a Micro USB connection which will be fully charged in approximately 3 hours. You can charge using the supplied AC Adaptor (BD-217) or use a third party USB charger. The ICOM M25 uses 5V/1A (Max.) power to charge the unit so you can use smartphone, table or digital camera charges also their successful use is not guaranteed. There is a 4-step battery life indicator.

There are 55 voice channels with the ICOM radio which includes simplex and duplex channels. Simplex allows you to communicate with other boats, ships or yachts. Duplex channels are generally a shore based communication channels whereby you can talk with a shore-based radio.

There is a powerful 550mW (12 Ohm load) audio output and received voice can be heard loud and clear. Volume loud and volume mute can be chosen by holding the VOL/SQL button and push up or down button. There is also an optional HM-213 waterproof speaker microphone that will provide extra convenience for ease of use.

Other features of the ICOM M323G include quick access favourite channel function, Dual/tri-watch function for monitoring Ch.16 (distress channel) and/or a call channel.

Furthermore you will get monitor function for noise squelch control with VOL/SQL button, auto scan function

Optional extras include speaker-microphones (HM-167 and HM-202).


ICOM iC-M25 Handheld VHF Marine Radio Features

‣Large, easy to read LCD; displays large numbers
‣Buoyant Radio; floats on water and flashes to help you locate it in the water
‣Volume load and volume mute
‣IPX7 Waterproof rating (1m depth for 30 minutes)
‣AquaQuake water draining function ejects water when system has been submerged in water
‣Dual/Tri-Watch function for monitoring Channel 16 and/or call channel
‣Quick channel selection with the Favourite channel function
‣Long 11 hour battery life
‣Belt clip and lanyard included
‣Optional waterproof microphones and cigarette lighter adaptor
‣1 year guarantee


What's in the box? (when purchased from ActiveGPS.co.uk)

‣ICOM IC-M25 Handheld Marine Radio
‣Belt Clip
‣Cigarette Lighter Adaptor
‣Quick start manual


ICOM IC M25 Specification

‣Technology: VHF radio
‣Display: LCD
‣Touchscreen: No
‣Waypoints: None
‣Floats on water: Yes, buoyant Radio
‣Battery: 4 level battery indicator, 11 hour battery life
‣AquaQuake: Yes
‣IPX waterproof rating: IPX7
‣Output power: 5W RF output
‣Sound: Active 550mW audio
‣Guarantee: 1-year
‣ICOM IC-M73euro manual

Manual requires Adobe Acrobat Reader
Download a free copy here

This product is a sophisticated electronic device which requires that you read, understand, and act upon the information given in the instruction manual (usually available via the above 'manual' link). You will need internet access and, in accordance with the manufacturers’ recommendations, regularly seek out and accept all firmware or software updates offered by the manufacturer. All GPS devices need to ‘see’ the satellites in the sky. Therefore you will need to know that your vehicle does not have glass that will block or impede the GPS signal.
