Garmin BC 20 Wireless Reverse Camera

Product Code: GARBC20

Add a reversing camera to your vehicle and view the moving pictures on the screen of your compatible your Garmin Camper or dezl 760.

The reversing camera available to buy on this page includes everything you need to complete the full installation of the BC 20 backup camera.

When paired with a compatible Garmin dezl or Camper sat nav, the Garmin BC 20 wireless reversing camera helps you see what's behind your vehicle when you are reversing.

Please note: We recommend that you use the services of a qualified auto electrician to install the Garmin BC 20 wireless camera.

Garmin part number: 010-12043-01

Compatibility: Compatible with Garmin Camper 760LMT-D and dezl 760.

Garmin BC 20 Wireless Reverse Camera has been discontinued.

Deliveries

We offer UK, Europe and Worldwide deliveries. We despatch orders at 4:30pm on Monday, Tuesday, Wednesday, Thursday and Friday. We need to receive your order on those days by 3:00pm. When possible we may despatch orders received after that time. No orders are despatched on Saturday, Sunday or Bank Holidays in England and Wales.

We offer FREE UK delivery on all orders of £50.00 or more, plus next working day and guaranteed Saturday delivery options. Click here for further info. All options also appear at the basket pages.

Garmin BC 20 Wireless Backup Camera

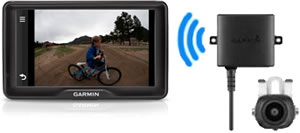

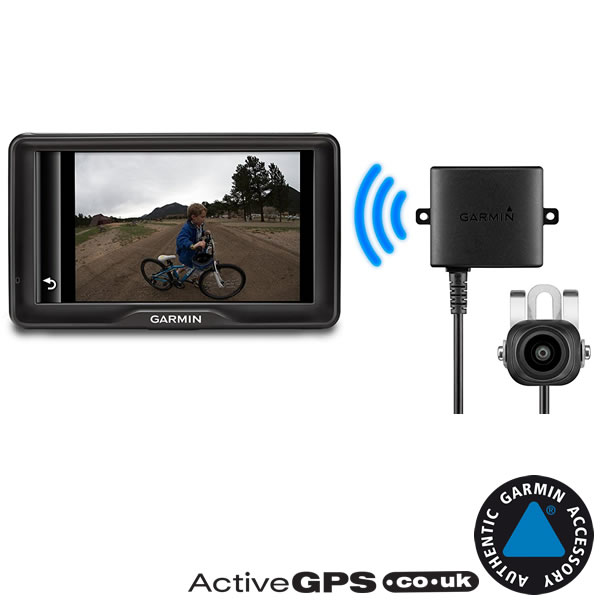

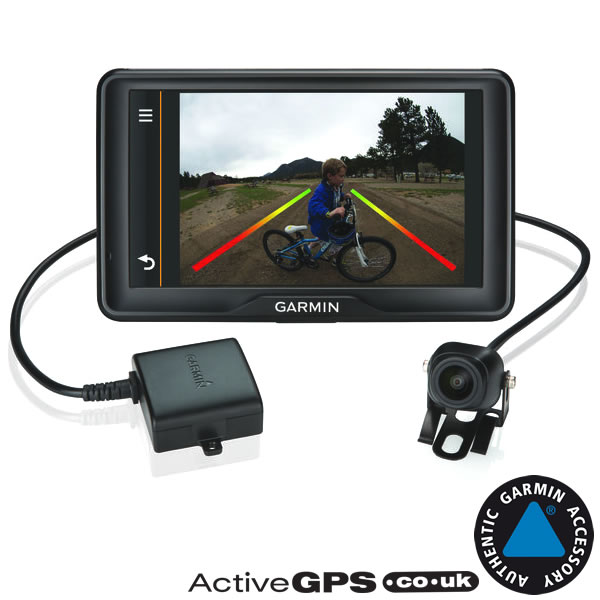

Add a reversing/backup camera to your truck, motorhome or car by buying the Garmin BC20 wireless reversing camera. Once installed the BC 20 camera system will wirelessly send the images from the camera to the screen of your compatible Garmin dezl or Camper sat nav touchscreen display.

What's more, if the Garmin BC 20 camera is wired to your reverse lights for power, your compatible Garmin sat nav can automatically display camera footage every time the vehicle is shifted into reverse - and go back into navigation mode when shifted into a forward gear.

As another option, you can wire the BC 20 camera system to constant power, which allows you to toggle between the navigation display and camera reversing display modes at the press of a button. The transmitter will send camera footage to your compatible Garmin sat nav's receiver mounted up to 10 metres (33 feet) away (range varies based on installation; some vehicles may require an extension cable, sold separately).

Multiple BC 20 Cameras

You can pair up to four wireless cameras with the BC 20 receiver cable. For example, you can pair one reversing camera installed on your vehicle and a second reversing camera installed on a trailer.

For more information on installing the BC 20 wireless camera, please view the manual (opens in PDF format).

The reversing camera available to buy on this page includes everything you need to complete the full installation of the BC 20 backup camera.

Key Features

‣Shows what's behind your vehicle when in reverse
‣View footage right on your sat nav display (sold separately)
‣Wire to constant power and toggle easily between camera and navigation modes
‣Wirelessly transmits video up to 10 metres
‣Rugged enough to withstand harsh weather
‣Allows up to four cameras to be used together
‣Integrates with many Garmin Camper 760 and dezl 760 sat nav devices
‣Genuine Garmin Accessory

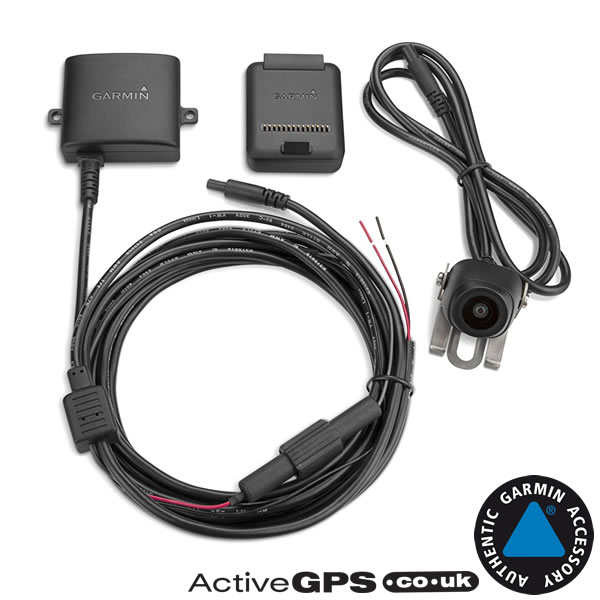

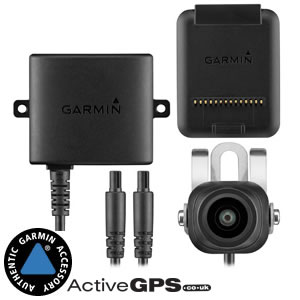

What's in the box?

‣Reversing Camera
‣Transmitter
‣BC 20 Receiver Cable
‣Camera Mounting Bracket

What is the Garmin BC 20 backup camera compatible with?

The genuine Garmin BC 20 reversing camera is compatible with the following Garmin automotive sat navs:

Garmin Camper 760LMT-D, dezl 760LMT-D.

Please note: Garmin Camper, dezl or nuvi sat nav not listed above? You may be able to use the Garmin BC 30 reversing camera instead. Click here for BC 30 Garmin sat nav compatiblility list.

Garmin BC 20 Camera Technical Specification

‣Camera Sensor: 1/3.7-type CMOS
‣Camera Resolution: 640 x 480
‣Camera Angle: 115 degrees (vertical); 140 degrees (horizontal)
‣Waterproof Rating: IPX7
‣Wireless Transmission Type: 2.4 GHz ISM radio band
‣Wireless Transmission Distance: 10 metres (32 feet)

Garmin BC 20 Camera Questions and Answers

Question: Do you sell the https://www.activegps.co.uk/garmin-dezl-760-suction-cup-mount.htm, but the one that can connect with my Camera BC20?

Answer: Our understanding is that there is only ONE single suction cup mount for the Garmn dezl 760. The one we sell is the genuine one for use with the dezl 760. I am therefore unable to answer your question, as to our knowledge there isn't an alternative or different one.

The BC 20 camera connects via the vehicle power cable socket on the dezl 760 suction cup mount when using the correct and genuine Garmin BC 20 vehicle/power cable.

Do you have a question about the Garmin BC 20 Camera? Submit your question via our contact page.

Why buy from us?

We are official Authorised Internet Retailers for Garmin. We sell genuine Garmin products, accessories and maps. We purchase from assigned Garmin UK distributors. We do not buy on the grey market and we do not sell counterfeit products. You can rest assured that by purchasing from ActiveGPS you will receive the full support of Garmin.
