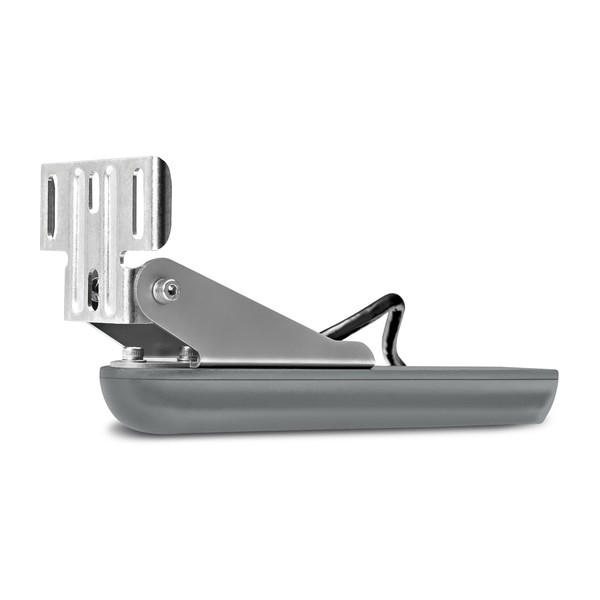

Garmin GT40-TM Transom Mount Transducer

Product Code: GARGT40

Garmin GT40-TM Transom Mount Transducer

The Garmin GT40 transom mount transducer is perfect for the shallow water fisherman who want traditional sonar, CHIRP ClearVu and CHIRP SideVu scanning sonar.

Once connected to your compatible Garmin Chartplotter or Fishfinder the GT40 transom mount mount transducer cconsistently displays fish arches as well as clear pictures of objects, structure and fish that pass below and to each side of your boat.

The CHIRP ClearVu/SideVu elements have a power rating of 500W per element (1,500W total) and operating frequencies of 455/800 kHz. The traditional sonar has a power rating of 500W and operating frequencies of 77/200 kHz. It also includes a built-in fast response temperature sensor.

Garmin part number: 010-01963-00

Compatibility: Compatible with selected Garmin chartplotter/fishfinders models, please complete our online form on the Garmin Transducers Buyer's Guide page.

Garmin GT40 Transom Mount Transducer - £229.99

Garmin GT40 Transom Mount

The Garmin GT40 transom mount transducer is perfect for the shallow water fisherman who want traditional sonar, CHIRP ClearVu and CHIRP SideVu scanning sonar.

Once connected to your compatible Garmin Chartplotter or Fishfinder the GT40 transom mount mount transducer cconsistently displays fish arches as well as clear pictures of objects, structure and fish that pass below and to each side of your boat.

The CHIRP ClearVu/SideVu elements have a power rating of 500W per element (1,500W total) and operating frequencies of 455/800 kHz. The traditional sonar has a power rating of 500W and operating frequencies of 77/200 kHz. It also includes a built-in fast response temperature sensor.

The Garmin GT40-TM transducer comes complete with installation instructions.


12-pin Transducer Connectivity

The Garmin GT40-TM features an 12-pin connection. Depending upon the Garmin chartplotter or fishfinder you intend to connect the GT40TM transom mount transducer to you may need to additionally buy the following Garmin adaptor cable to complete the installation?

12-pin to Dual 4-pin Transducer Y-Cable


Key Features

‣Transom mount transducer
‣12-pin thru-hull transducer
‣Traditional sonar (77-200kHz)
‣ClearVu/SideVu CHIRP (425/485 kHz)
‣Traditional/CHIRP Power 500W
‣ClearVu/SideVu 500W
‣Genuine Garmin accessory


What's in the box?

‣GT40-TM transducer
‣Transom mount
‣Mounting hardware
‣Documentation


What is the Garmin GT40-TM compatible with?

The genuine Garmin GT40-TM is transom mount transducer and is compatible with selected Garmin chartplotter/fishfinders models. Unless you are sure it is compatible with your Garmin marine GPS device please complete our online form on the Garmin Transducers Buyer's Guide page.

Once you have completed the online form with details of the Garmin marine device you own or intend to use your Garmin transducer with, we will then be able to confirm the exact transducer best suited to your needs.

The Garmin Transducer online form also asks: What material is your boat's hull made from? How is your motor mounted? Which transducer mounting style would you like to use? What is the deadrise angle of the boat's hull where the transducer will be mounted? What sonar view(s) do you require?

View the Garmin Transducer Buyer's Guide


Garmin GT40-TM Technical Specification

Frequency: Traditional (77/200 kHz); ClearVu/SideVu CHIRP 455 kHz (425-485 kHz) and 800 kHz (790-850 kHz)

Power: Traditional 500W; ClearVu/SideVu 500 W

Number of pins on connector: 12

Beamwidth: Traditional (45/15); ClearVu/SideVu (1.1x53 @ 455 kHz) & (0.7x30 @ 800 kHz)

Maximum depth: Traditional: 1,900 ft. freshwater & 900 ft. saltwater; ClearVu: 750 ft.; SideVu: 500 ft.

Depth/Speed/Temperature: Depth and Temperature

Number of pins: 12-pin

Cable length: 30 ft.

Supported deadrise/Transom angles: 0°-70° degree transom
